The New Benchmark

Built for versatile performance, NAEOTOM® Alpha.Prime brings Quantum Technology into clinical routine.

  • A new imaging standard to support lesion detection, characterization and treatment planning
  • AI-powered workflows speed up processes
  • Quantum Spectral Imaging and Quantum HD resolution in single source CT for the first time

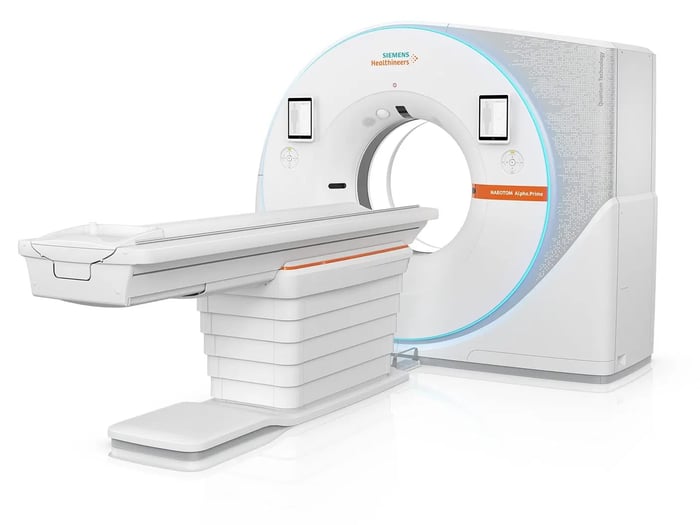

NAEOTOM Alpha.Prime Isolated Image

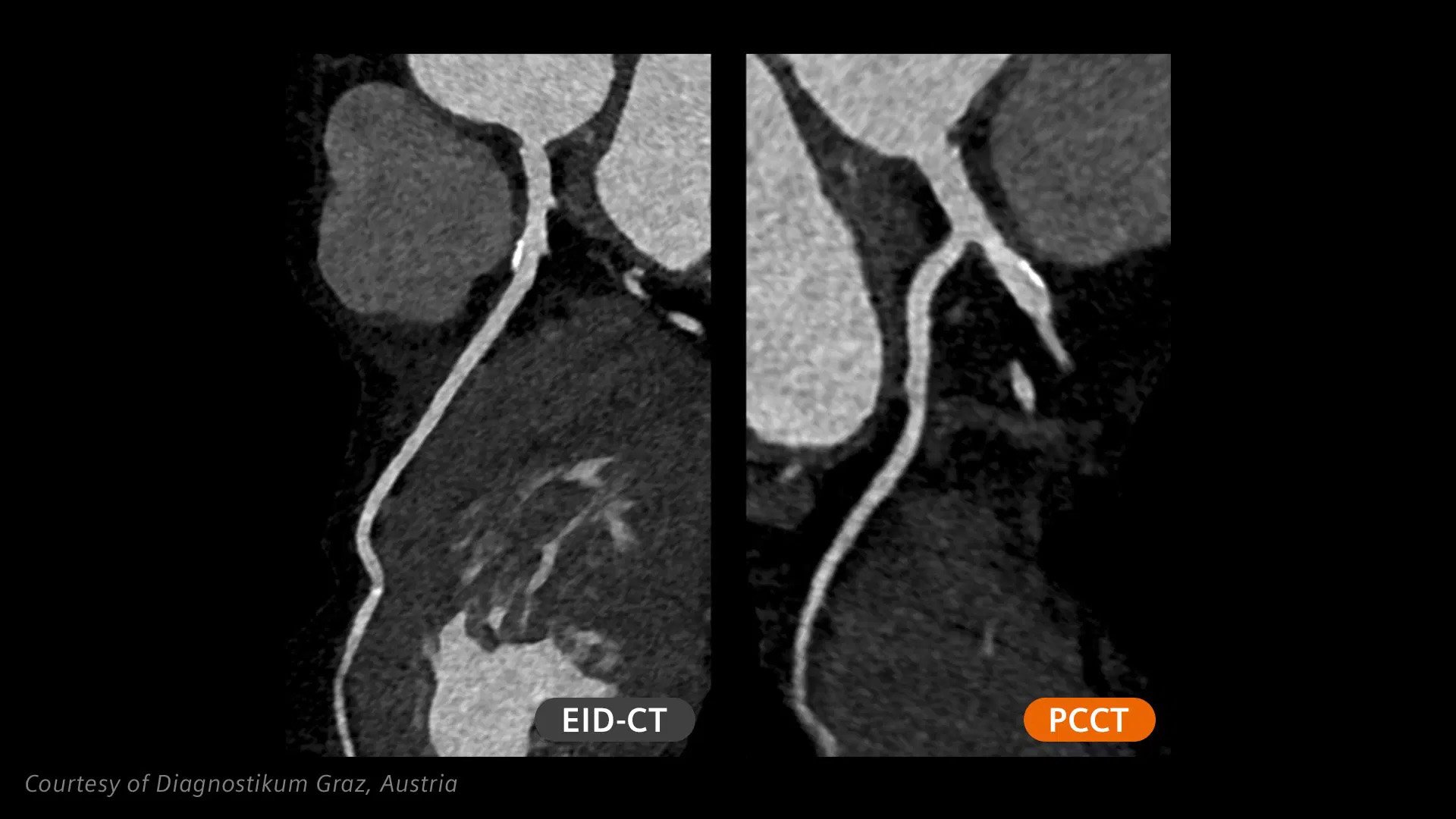

Benefit more patients

Patients with high calcium scores can now be scanned with photon-counting CT and benefit from Quantum Technology cardiac imaging with reduced stack artifacts enabled by ZeeFree.

NAEOTOM Alpha.Prime Cardiology

More details in neurology

The unique 0.2 mm slice thickness of NAEOTOM Alpha.Prime with Quantum HD provides high accuracy in neurology and can help change patient diagnoses, from the assessment of stroke, aneurysm, CSF venous fistula or the inner ear.

NAEOTOM Alpha.Prime Neurology

Consistent findings in oncology

Quantum Technology supports better visibility for tumor detection, characterization and monitoring. Solutions for CT-guided interventions or Radiation therapy enable treatment planning, biopsies or ablations.

NAEOTOM Alpha.PrimeOncology

Empower users with AI

myExam Companion delivers intelligent imaging with individually guided scans that optimize procedures to help leverage the full potential of the scanner. Automated AI-driven workflow solutions enable a faster workflow and utilize zero-click Recon&GO to create the desired clinical operation.

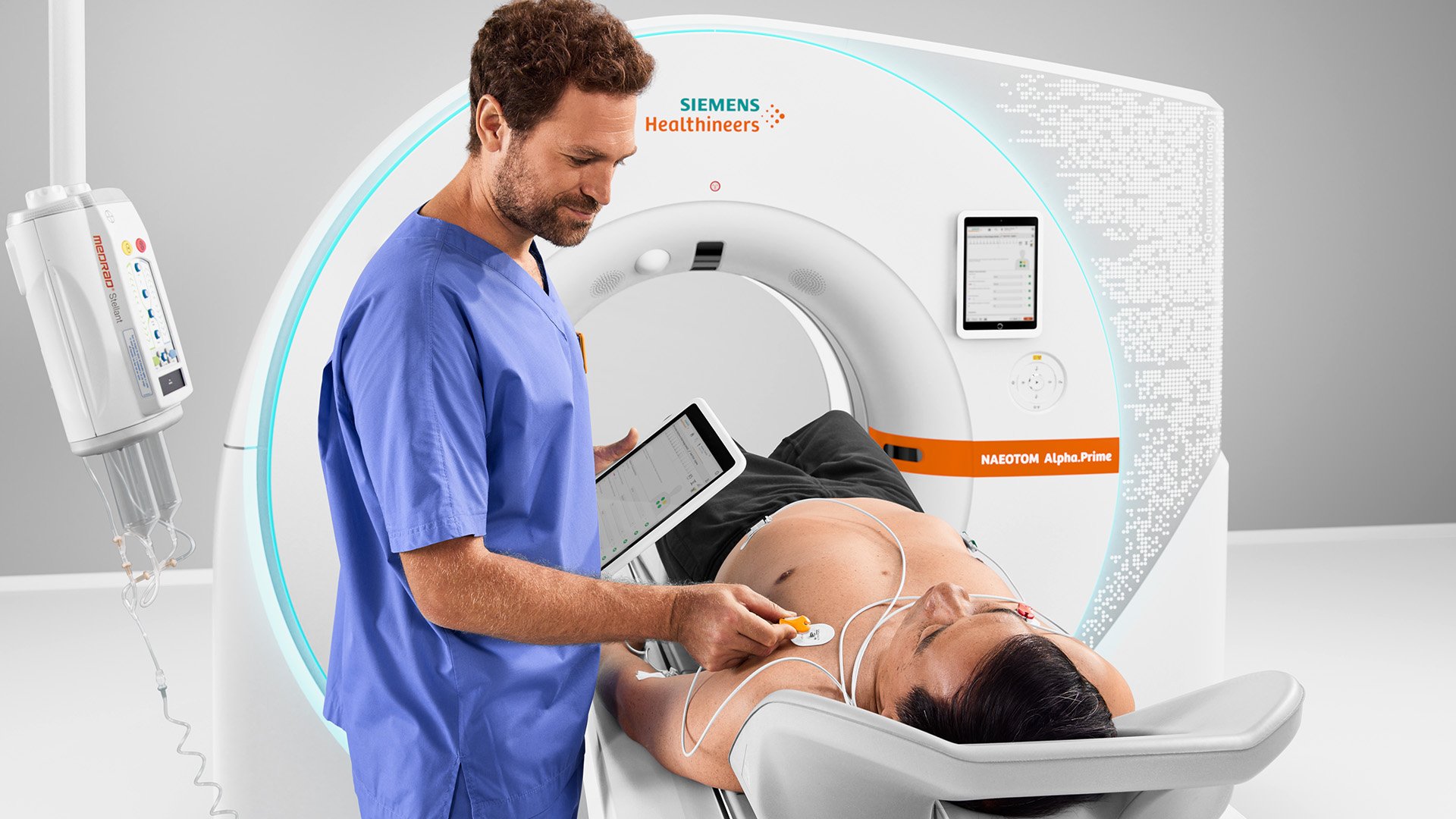

NAEOTOM Alpha.Prime Image

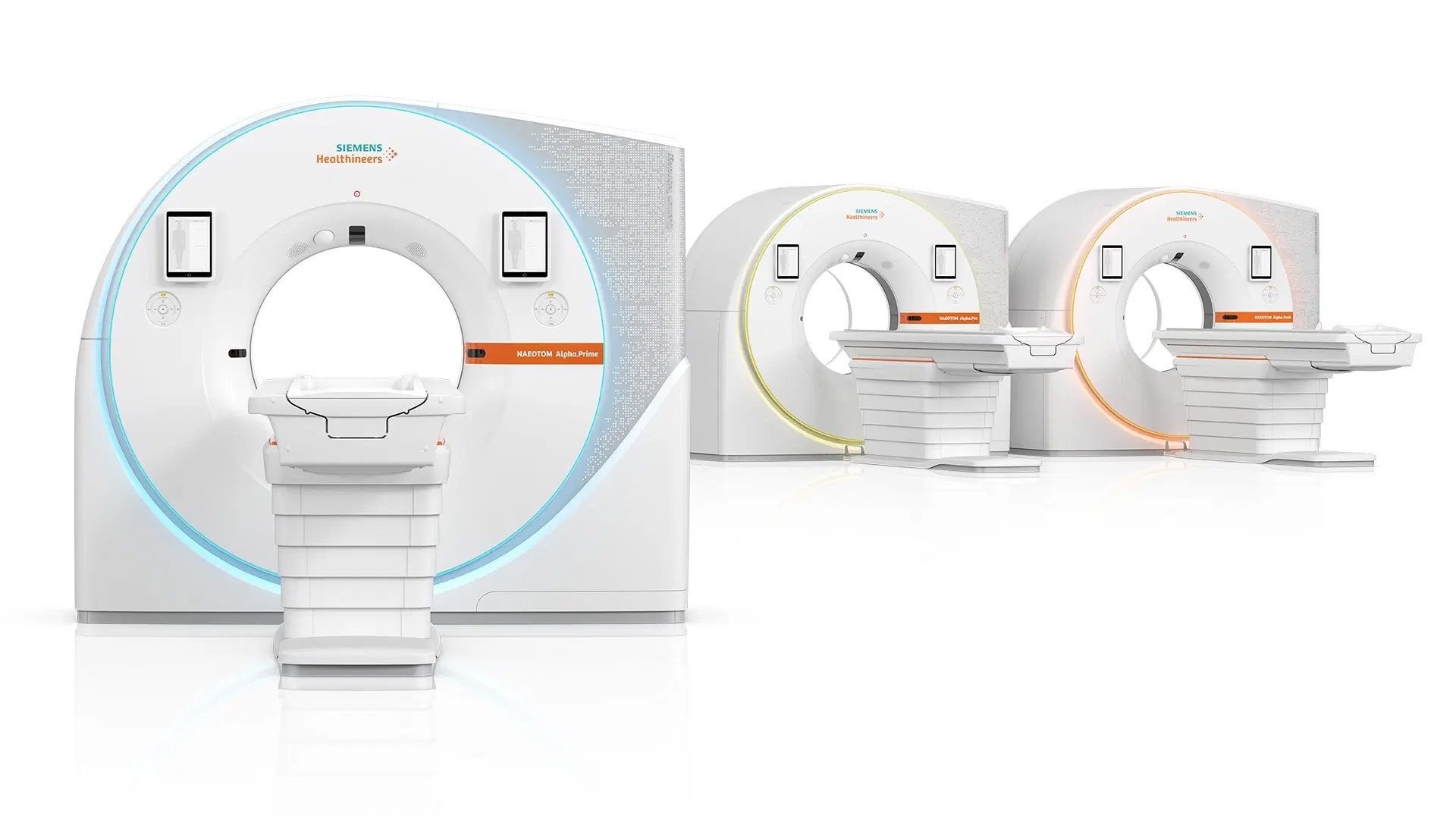

Scale with photon-counting CT

Whether you are starting your journey with photon-counting CT or expanding on the profound clinical impact you have achieved with NAEOTOM Alpha, NAEOTOM Alpha.Prime enables you to elevate care and broaden access to photon-counting CT for a wider range of patients.

NAEOTOM Alpha Class Focus Prime

Evidence

Powerful low-dose performance

 Vectron® X-ray tube and Tin Filter 120 kW (1300 mA @ 90 kV)

QuantaMax detectors

Cadmium-telluride based photon-counting semi-conductors with 4 cm z-coverage and over 790K detector elements

Integrated laser guidance

Interventions with myNeedle Guide and myNeedle Laser

Dual Source technology

Enable a high pitch of up to 1.5 and a temporal resolution down to 125 ms

Uncompromised patient experience

Patient tables that go as low as 38 cm, an 82-cm bore size and visual instructions for patients

AI-enabled user experience

Based on the mobile workflow with GO technologies and up to five dockable tablets, myExam Companion, myExam Satellite and FAST 3D Camera

Quantum Technology

Equal energy contribution, small detector pixels, no electronic noise and intrinsic spectral sensitivity

Data processing

Quantum Iterative Reconstruction and Coupled CoAx data transmission

Technical Details

Detectors

 6 cm QuantaMax® photon-counting CT detector

X-ray tube

Vectron X-ray tube and Tin Filter

Max. number of acquired slices

144 slices

Number of physical detector rows

288 slices

mA

 up to 1300 mA

Temporal resolution

down to 125 ms

kV

70, 90, 120, 140 kV

Sn100, Sn140 kV

z-coverage

 144 x 0.4 mm

120 x 0.2 mm (Quantum HD)

Spatial resolution

 0.11 mm (in-plane) in Quantum HD mode

Power

120 kW

Table load

 up to 750 lbs (340 kg)

Max. scan speed

345 mm/s (max pitch 1.5)
