Changing views in Computed Tomography


For care providers, the pressure to cut expenses results in an ever-increasing need for standardization and precision medicine. The SOMATOM Edge Plus CT scanner from Siemens Healthineers provides diagnostic imaging at the appropriate dose and with reproducible accuracy.

Obtain rich, detailed information with technologies that bring tin-filtered scanning, 4D, and quantitative imaging to your clinical routine. Game-changing workflow automation simplifies scan preparation and helps you achieve new levels of precision.

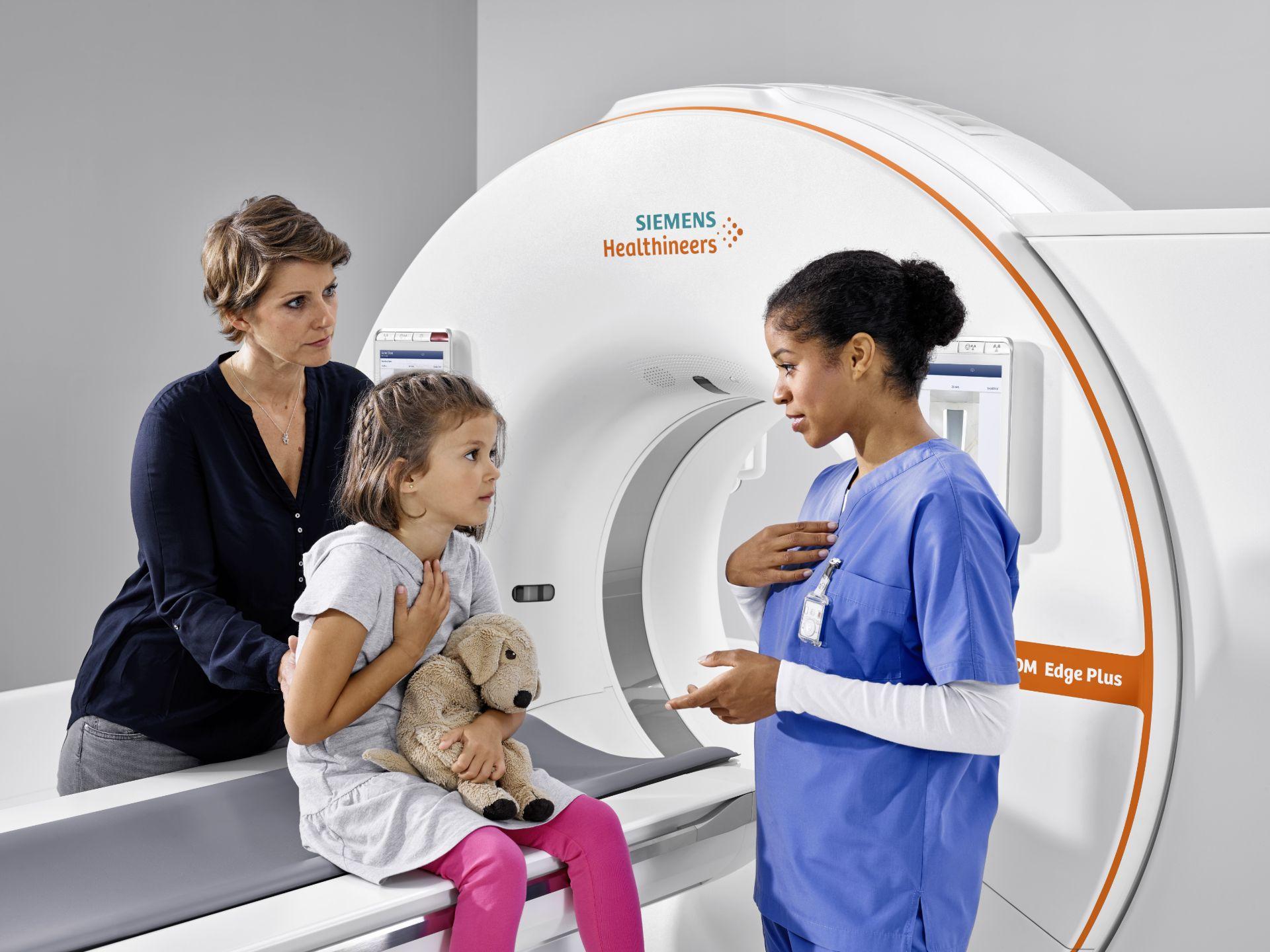

SH_CT_43753_17



Changing views on patient diversity — with personalized scanning
Scan virtually all patients with diagnostic confidence.

  • Get powerful images of obese patients: With SOMATOM Edge Plus, you can obtain sharp and
    rich-in-contrast images at high speed and low dose even with large patients.
  • Gently scan dose-sensitive patients: Minimize the need for sedation and allow low-dose scans for children with High Power at low kV and integrated CARE Child technology.
  • Freeze motion when your patient can't: Gain excellent image quality within seconds for emergency cases due to the combination of High Power reserves with high coverage of up to 230 mm/s in clinical routine.

Changing views on clinical paradigms — with advanced imaging
Gain new diagnostic insights like functional information and tissue characterization, acquired with no dose or time penalty.

  • See more than ever before with tin-filtered scanning: Shield patients from clinically irrelevant dose and use CT for a wider application range with our Tin Filter technology.
  • Add dynamic imaging to your clinical routine: Make dynamic imaging an everyday method for nearly all patients and anatomical regions at the right dose and contrast-to-noise ratio.
  • Perform advanced quantitative imaging with no dose penalty: Eliminate additional non- contrast scans by creating virtual ones – backed by our unique TwinBeam Dual Energy technology.

Changing views on patient positioning — with automated workflows
Save time and achieve consistent results with smart automation for fast, precise positioning, scanning and postprocessing.

  • Safeguard correct and consistent positioning: The FAST Integrated Workflow with FAST 3D Camera helps your team acquire manage tight schedules by getting scans right the first time.
  • Get closer to your patients: Set parameters without leaving your patients and offer them individual care with our Touch Panels on eye-level.
  • Simplify preparation of patients and scanner: Accelerate workflows and lower your dose, optimizing process efficiency and improving patient outcomes with the right software packages.

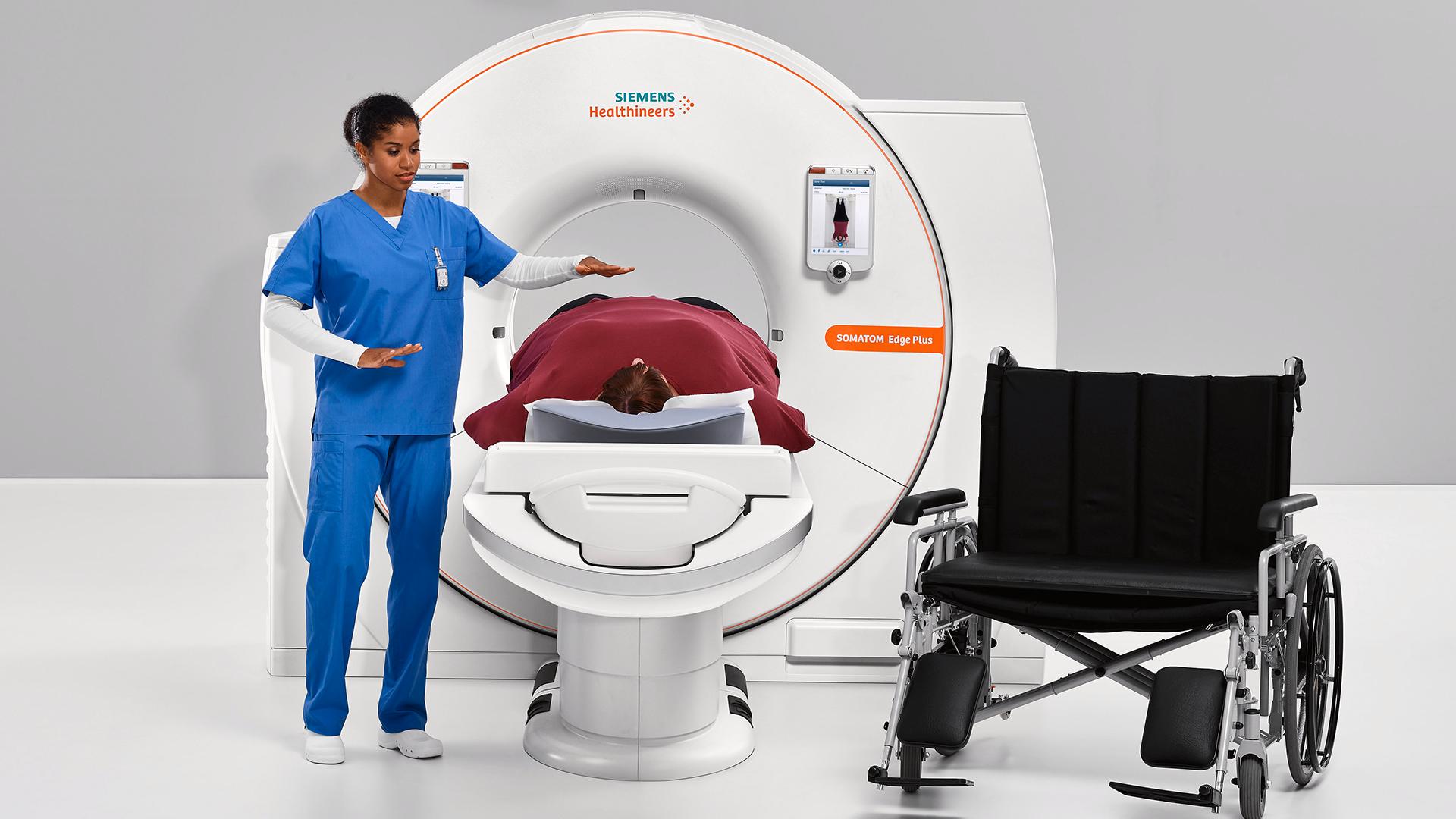

DI_CT_SomatomEdgePlus_image_Somatom_Edge_Obese_3D_Camera_10723_1800000004384649

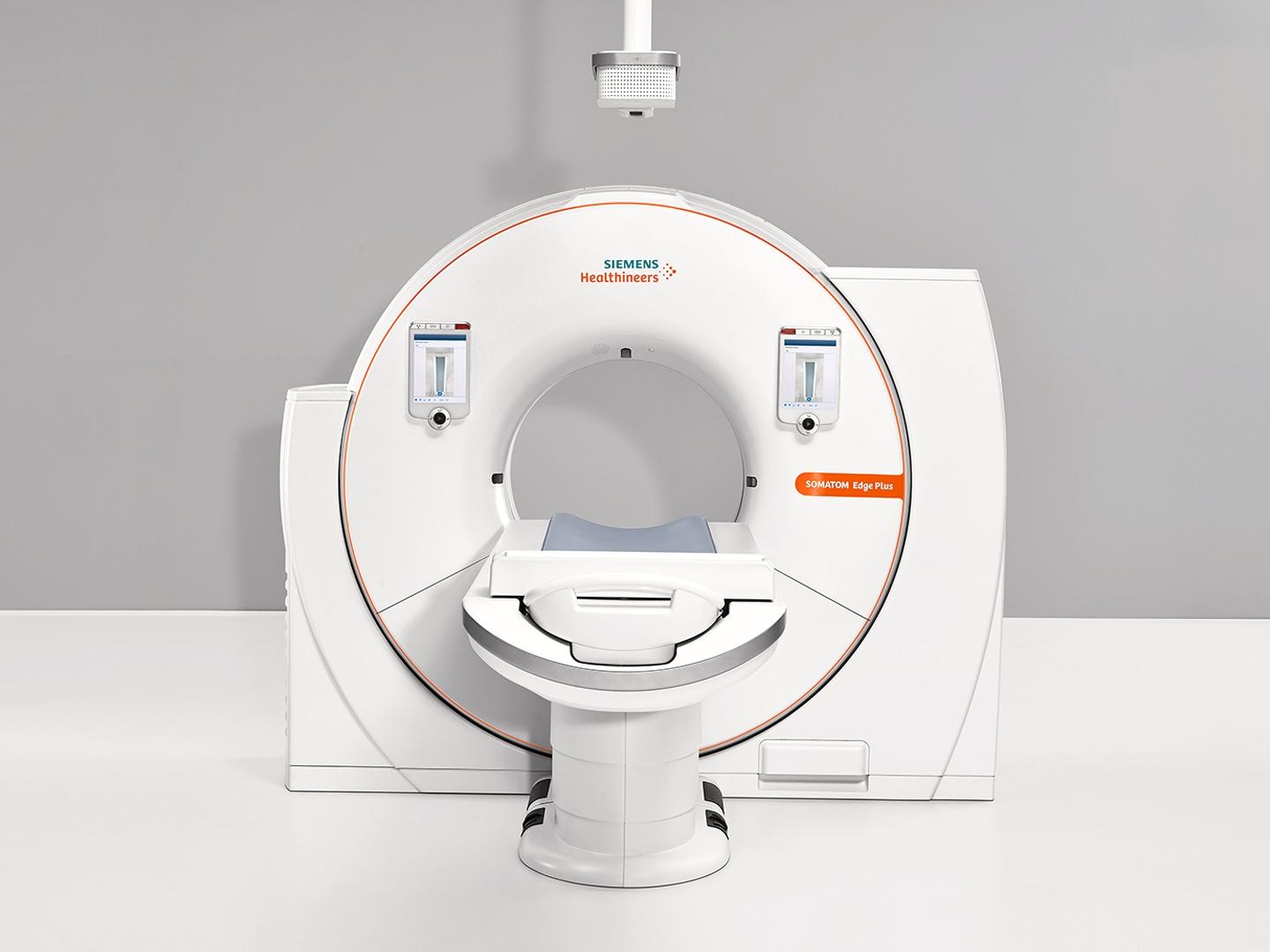

DI_CT_SomatomEdgePlus_image_Somatom_Edge_Scanner_teaser_1800000004385285

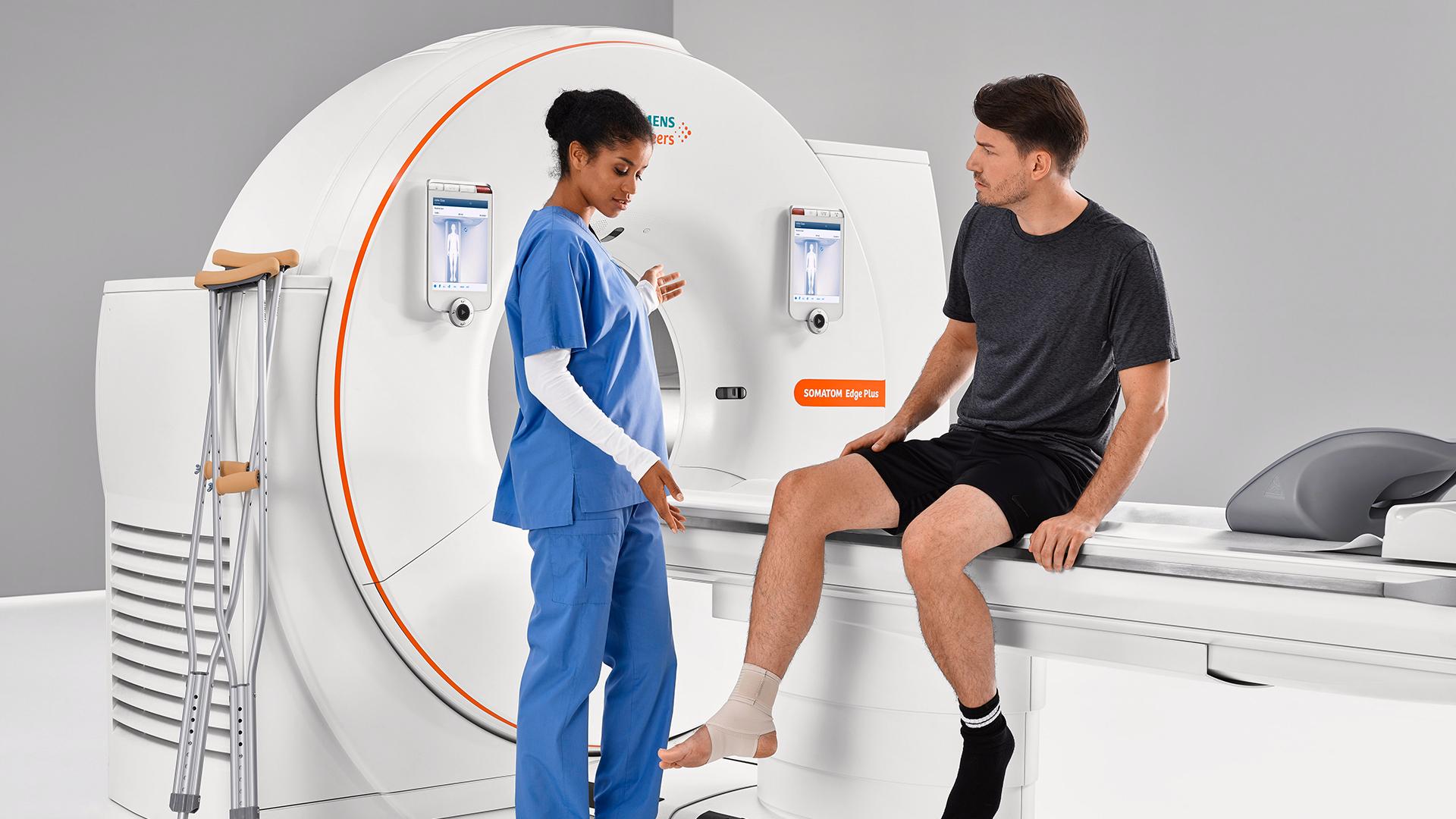

DI_CT_SomatomEdgePlus_image_Somatom_Edge_Orto_Ankle_sitzend_11147_1800000004384653



Technical Details

Detector: StellarInfinity detector
Number of acquired slices: 128
Number of reconstructed slices: 384
Spatial resolution: 0.30 mm
Rotation time: 0.28 s
In-plane temporal resolution: 142 ms
Generator power: 100 kW
kV steps: 70, 80, 90, 100, 110, 120, 130, 140 kV
Max. scan speed: 23 cm/s
Table load: up to 307 kg / 676 lbs
Gantry opening: 78 cm
