LUMINOS Q.namix R

Dynamic simplicity. Multifunctional remote imaging system for fluoroscopy, radiography and beyond.

Hectic radiology schedules demand seamless transitions between exams. While 2-in-1 fluoroscopy and radiography systems aim to help, their cumbersome controls and complex floor plans often hinder productivity.

LUMINOS Q.namix R is a multifunctional remote imaging system that simplifies imaging with:

Simplified controls and intuitive interface for streamlined workflows
Seamless switching between fluoroscopy and radiography exams
Built-in workflow guidance to enhance productivity
Low-dose imaging without compromise

From now on, nothing will stand between you and efficient, long-term performance.

LUMINOS Q.namix R

Product Brochure

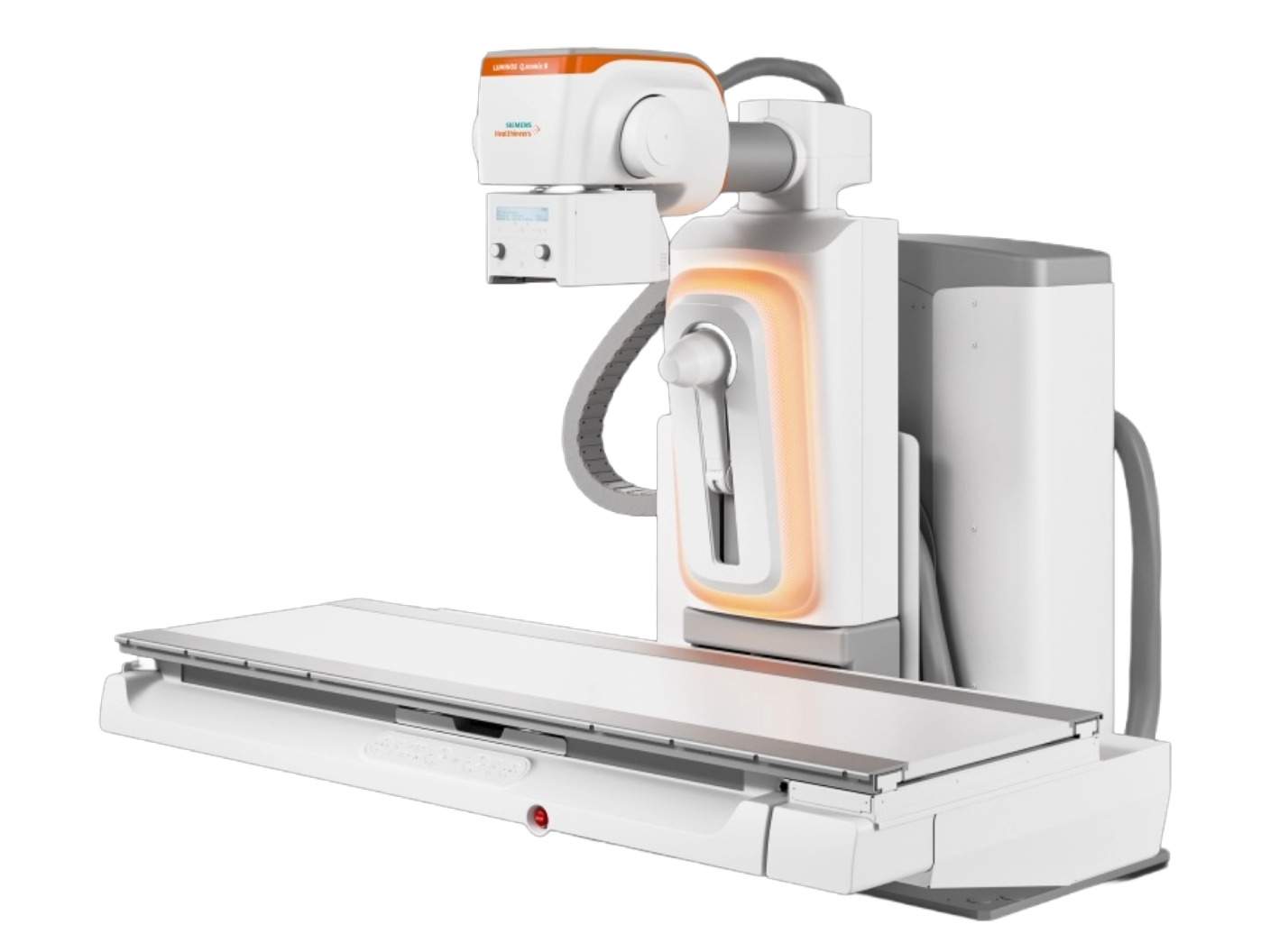

Next-generation imaging system

Enjoy easy system interaction with intuitive controls, clear allocation and all tasks in one place. The next-generation imaging system from Siemens Healthineers seamlessly integrates into your institution’s network infrastructure and is compliant with all standard DICOM functionalities.

Easy switching between exam types
Clinical protocols (CP) predefined for optimal dose control
Body model for quick selection of suitable CPs
Modification of institutional data, for instance accessing operator and patient specific information

Intuitive UI and large touch monitors

Intuitive user interfaces and monitor displays are key for providing easy access to functions and support efficient clinical workflows.

Large touch monitors for access to relevant functionalities in the control and examination rooms
Built-in split view
32” monitor¹ provides reference image alongside live scene
Display trolley or display ceiling suspension (DCS) option available

Versatile clinical applications

Besides fluoroscopy procedures, a broad range of clinical capabilities is essential for covering multiple clinical applications with fluoroscopy systems:

Fluoroscopy
Radiography
Orthopedic imaging¹
Basic Angiography
Speech pathology¹

Optimize system utilization

New streamlined controls

LUMINOS Q.namix R offers controls with fewer joysticks and buttons as part of the integrated and optimized workflow concept.

10” touch screen promotes user focus due to angulation in user direction
SmartTouch prevents unintended system movements

Maximum operational flexibility

Flexible SID ranges
LUMINOS Q.namix R offers maximum flexibility and clinical versatility with an SID of up to 180 cm (71″) for chest imaging and orthopedic exams. It includes full radiography integration with the YSIO X.pree ceiling-mounted second tube.

X.wi-D detectors¹
These high-resolution, glass-free detectors are lighter, robust, waterproof, and easy to clean, with 99 µm pixel pitch for sharp images² and IP67 protection for easy maintenance³.

Intelligent imaging

myExam Companion makes expertise accessible with its built-in knowledge and intuitive interface, enabling staff at all levels to interact naturally with the system. Leveraging digitalization, it turns data into expertise, helping users achieve reproducible results and unlock the full potential of imaging devices.

myExam 3D Camera¹
Virtual Collimation¹
Smart Virtual Ortho¹
Auto Thorax Collimation¹
Auto Long-Leg and Full-Spine Collimation¹

Convenient floor plan design

LUMINOS Q.namix R offers a floor plan designed for convenience, with short walking paths and easy access to controls.

Furthermore, it provides sustainable, clinically and economically efficient productivity boosts:
With latest cybersecurity protections
From a vendor with more than 125 years of fluoroscopy and radiography expertise standing for sustainable quality and service

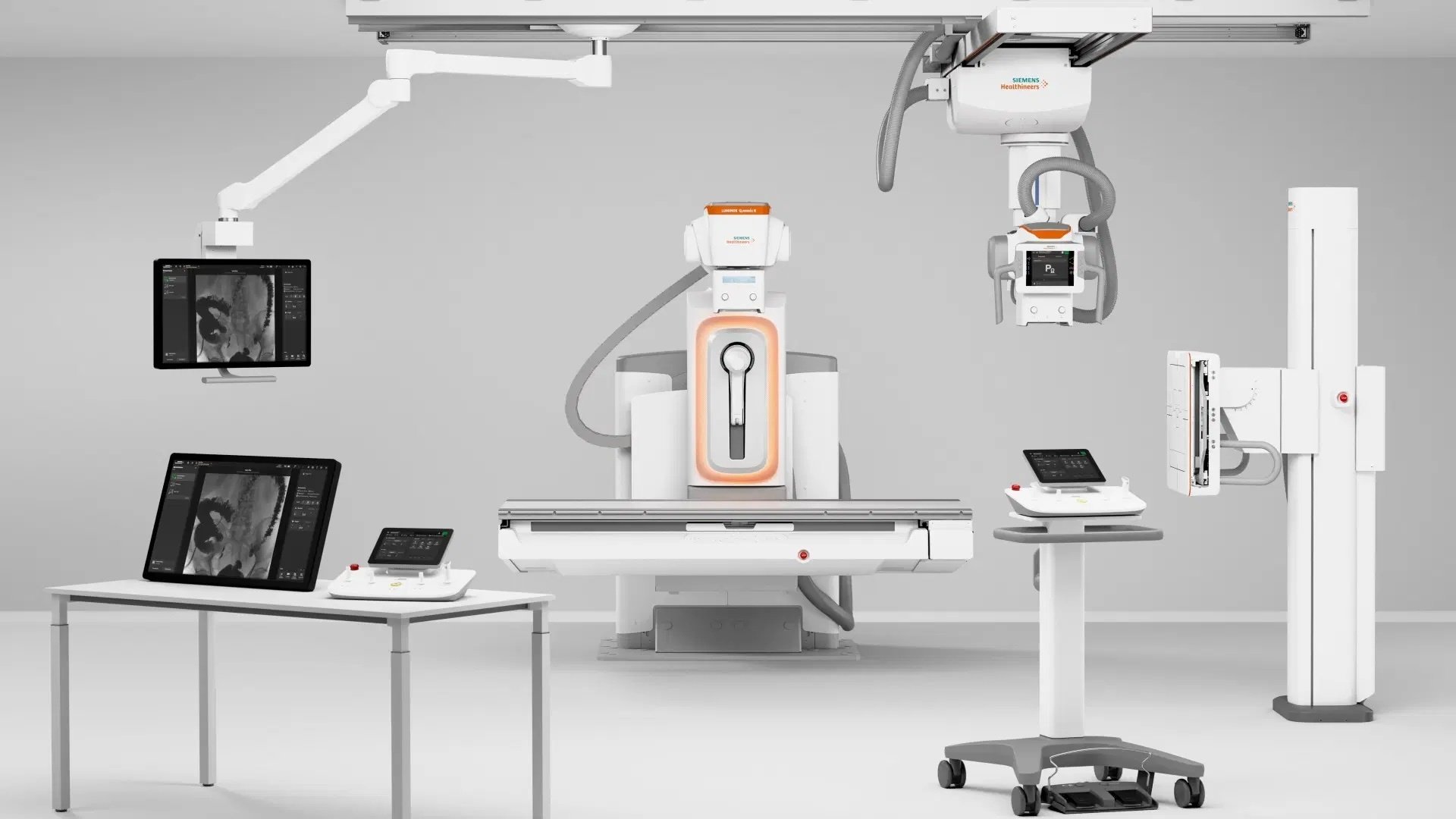

Large and flexible touch monitors for the examination room in 24" or 32" (option) as DCS¹ or trolley¹ solution
New imaging system with intuitive workflow concept and user navigation
Fluoroscopic table with clean, seamless design, streamlined tableside control elements, and optional flat tabletop
Compact system design with myExam 3D Camera¹ for main system unit
MoodLight¹ for elevating patient experience to a new level
YSIO X.pree option with ceiling-mounted second tube with myExam 3D Camera¹ and 10.4″ TUI
Remote Control Console (RCC) with 10.4″ TUI and wireless footswitch¹
Available with fixed detector1 or for wireless large detectors MAX wi-D1 and X.wi-D 35/431
Bucky wall stand (BWS)¹ with a travel range from 31.5 cm (12.4”) to 175 cm (68.9”)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nunc nunc nibh, pharetra non sollicitudin eu, luctus et lectus. Quisque finibus tincidunt felis, nec viverra lacus gravida eget. Fusce porta mauris a dolor bibendum, et lacinia augue semper. Vestibulum pellentesque quam a dignissim imperdiet. Fusce volutpat accumsan congue.

Large and flexible touch monitors for the examination room in 24" or 32" (option)

New imaging system with intuitive workflow concept and user navigation

Fluoroscopic table with clean, seamless design, streamlined tableside control elements, and optional flat tabletop

Compact system design with myExam 3D Camera¹ for main system unit

MoodLight¹ for elevating patient experience to a new level

YSIO X.pree option with ceiling-mounted second tube with myExam 3D Camera¹ and 10.4″ TUI

Remote Control Console (RCC) with 10.4″ TUI and wireless footswitch¹

Available with fixed detector¹ or for wireless large detectors MAX wi-D1 and X.wi-D 35/431

Bucky wall stand (BWS)¹ with a travel range from 31.5 cm (12.4”) to 175 cm (68.9”)

Technical Details

Imaging Workflow	New imaging system with intuitive workflow concept and user navigation Choice of touch monitors (24” or 32”¹) for control room and examination room as display ceiling suspension (DCS)¹ or trolley¹ solution
Remote fluoro system	Clean, seamless design with streamlined tableside control elements SID range at 115 cm (45”), 150 cm (59”) and 180 cm (71”) Travel range from 48 cm (19”) to 98 cm (39”) Table tilting -50°/+90°; -90°/+90°¹ Table load up to 330 kg (728 lbs.)⁵ myExam 3D Camera¹
Remote control elements	Remote Control Console (RCC) with 10.4" TUI Second RCC¹ in examination room Wireless footswitch¹
myExam IQ	Imaging concept for producing excellent and consistent images Embedded CARE program to minimize dose application Dynamic X.fluoro detector 43 cm x 43 cm (17” x 17”)
myExam Collimate	User-assisting system intelligence enabled by myExam 3D Camera¹ Virtual Collimation¹ Smart Virtual Ortho¹ Auto Thorax Collimation¹,⁶ Auto Long-Leg/Full-Spine Collimation¹,⁶
YSIO X.pree option	Ceiling-suspended second tube for advanced radiography exams with myExam 3D Camera¹ 4" touch user interface MAXalign for automatic display of detector angle
X.wi-D detectors	Glassfree wireless radiography detectors with a high-resolution of 99 μm and IP67 rating wi-D 24¹: 24 cm x 30 cm wi-D 35¹: 43 cm x 35 cm wi-D 43¹: 43 cm x 43 cm
MAX detectors	Wireless radiography detectors with a resolution of 148 μm MAX wi-D¹: 35 cm x 43 cm MAX mini¹: 24 cm x 30 cm MAX static¹: 43 cm x 43 cm
Bucky wall stand	Bucky wall stand (BWS)¹ for standing radiography examinations with Automatic tube tracking Travel range from 31.5 cm (12.4”) to 175 cm (68.9”) Tilting +90°/-20° or non-tilting Optional with MAX static or for MAX wi-D, X.wi-D 43, or X.wi-D 35

LUMINOS Q.namix R is not commercially available in all countries. Due to regulatory reasons its future availability cannot be guaranteed. Any technical data contained on this website may vary within defined tolerances. Original images always lose a certain amount of detail when reproduced.

1 Optional

2 Down to a spatial resolution of 5.06 lp/mm. Based on a user survey with the leading radiologist of the University Hospital in Augsburg, Germany. The individual experience may vary

3 A IP67 fluid-ingress protection rating makes it easy to clean and prevents fluids like blood from entering it

4 24 cm x 30 cm / 10” x 12“, 35 cm x 43 cm / 14” x 17”, 43 cm x 43 cm / 17“ x 17”

5 Value includes the additional weight of potential accessory products

6 Only available with YSIO X.pree option and myExam 3D Camera
