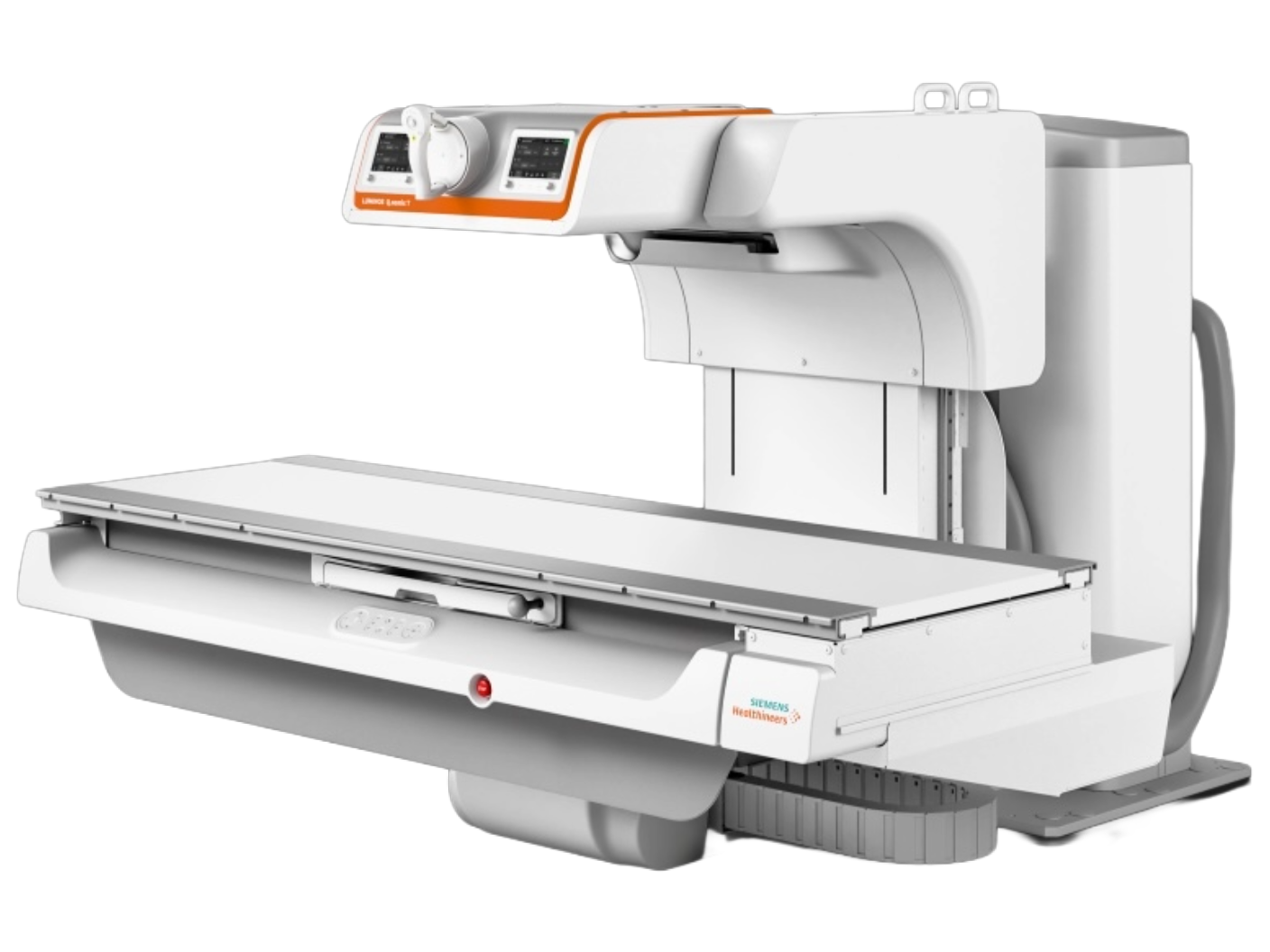

LUMINOS Q.namix T

Dynamic simplicity. Multifunctional remote imaging system for fluoroscopy, radiography and beyond.

Mastering fluoroscopic imaging takes expertise, yet even seasoned operators struggle with today’s complex 2-in-1 systems. With ongoing staff shortages, maintaining consistency and patient focus can feel like an uphill battle.

LUMINOS Q.namix T is designed by users for users and simplifies imaging with:

Intuitive controls and user-friendly interface for effortless operation
Consistent, high-quality imaging at low dose across all exams
Seamless performance in fluoroscopy, radiography and speech pathology
Ergonomic design for maximum comfort and efficiency
From now on, nothing stands between you and patient-centered imaging

LUMINOS Q.namix T

Product Brochure

All tasks in one place

Enjoy seamless system interaction with:

Intuitive controls and all tasks in one place
Smooth exam switching
Predefined clinical protocols (CP) for optimal dose control
Quick CP selection via body model
Access to operator and patient data
Fully DICOM-compliant and easily integrated into your network

Modern UI and large touch screens

Intuitive user interfaces and large touch monitors streamline clinical workflows:

Large touchscreens for convenient control in both exam and control rooms
Integrated split-view
32” monitor¹ displays reference images alongside live imaging
Optional display trolley or ceiling-mounted suspension (DCS)

Streamlined interfaces and intuitive operations

Touch Controls
Intuitive touch controls for easy positioning and seamless patient care.

Tableside adjustments for efficient positioning
Mirrored touch interfaces for quick access
Stay with the patient during the workflow

All-new OptiGrip
Ergonomic, ambidextrous design for intuitive control during exams.

Radiation trigger for fluoroscopy
Joystick-operated tabletop mode and tilting
Thumb joystick for table/collimation control

Comprehensive clinical capabilities

Enhance versatility with a broad range of clinical capabilities beyond fluoroscopy:

Fluoroscopy
Radiography¹
Orthopedic imaging¹
Basic Angiography
Speech pathology¹

Full integration of radiography

Full integration of radiography
Realize even more clinical flexibility in the examination in addition to the main system with YSIO X.pree option, a ceiling-mounted second tube.

X.wi-D detectors
Lighter, robust, waterproof and easy to clean, with 99 µm pixel pitch for sharp images² and IP67 protection for easy maintenance³.

myExam Companion

myExam Companion makes expertise accessible with an intuitive interface, helping staff at all levels achieve reproducible results and unlock imaging device potential.

myExam 3D Camera¹
Virtual Collimation¹
Smart Virtual Ortho¹
Auto Thorax Collimation¹
Auto Long-Leg and Full-Spine Collimation¹

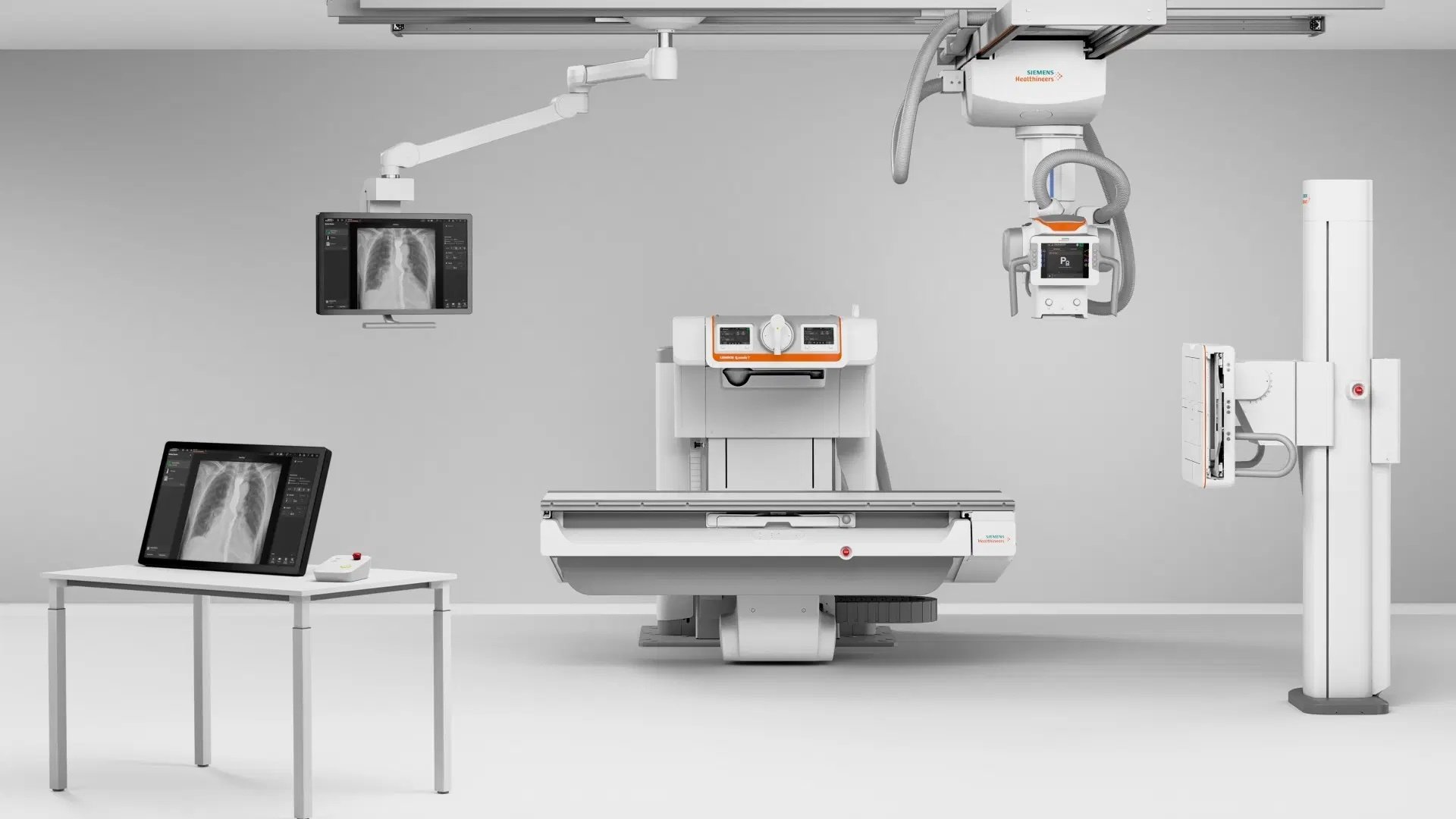

Conveniently designed floor plan

LUMINOS Q.namix T features a user-friendly floor plan with short walking distances and easy access to controls.

It also delivers lasting improvements in clinical and economic productivity:

Equipped with the latest cybersecurity protections
Backed by over 125 years of expertise in fluoroscopy and radiography, delivering sustainable quality and service

Large and flexible touch monitors for the examination room in 24" or 32" (option) as DCS¹ or trolley¹ solution
New imaging system with intuitive workflow concept and user navigation
Fluoroscopic table with clean, seamless design, streamlined tableside control elements, and optional flat tabletop
Compact system design with myExam 3D Camera¹ for main system unit
MoodLight¹ for elevating patient experience to a new level
YSIO X.pree option with ceiling-mounted second tube with myExam 3D Camera¹ and 10.4″ TUI
Remote Control Console (RCC) with 10.4″ TUI and wireless footswitch¹
Available with fixed detector1 or for wireless large detectors MAX wi-D1 and X.wi-D 35/431
Bucky wall stand (BWS)¹ with a travel range from 31.5 cm (12.4”) to 175 cm (68.9”)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nunc nunc nibh, pharetra non sollicitudin eu, luctus et lectus. Quisque finibus tincidunt felis, nec viverra lacus gravida eget. Fusce porta mauris a dolor bibendum, et lacinia augue semper. Vestibulum pellentesque quam a dignissim imperdiet. Fusce volutpat accumsan congue.

New imaging system featuring an intuitive workflow and user-friendly navigation

Large and versatile touch monitors for the examination room, offered in 24" or 32" (optional), with choices of DCS¹ or trolley¹ setups

Fluoroscopic table with compact, seamless design, simplified tableside control elements and flat tabletop as option

Automatic DIT parking with a single button press and DIT illumination to improve tableside operations

Mirrored Touch User Interface (TUI) screens for tableside system control and easy access to all imaging parameters

YSIO X.pree option with myExam 3D Camera¹

Available with a fixed detector1 or with a choice of wireless large detectors (MAX wi-D, X.wi-D 35/43)¹

Bucky wall stand (BWS)¹ for standing radiography exams

Technical Details

Imaging Workflow	New imaging system with intuitive workflow concept and user navigation Choice of touch monitors (24” or 32”1) for control room and examination room as display ceiling suspension (DCS)¹ or trolley¹ solution
Digital Imaging Tower (DIT)	All-new OptiGrip for ergonomic and patient-centered operations Mirrored TUI screens for ambidextrous tableside handling and easy access to relevant imaging parameters Automatic DIT parking with a single button press DIT illumination to improve tableside operations in dark settings
Tableside fluoro system	Clean, seamless design with streamlined tableside control elements Travel range from 65 cm (26”) to 112 cm (44”) Table tilting -50°/+90°; -90°/+90°¹ Table load up to 305 kg (672 lbs)⁴ Bucky table tray⁵ configurable with X.wi-D 35/431 or MAX wi-D¹
myExam IQ	Imaging concept for producing excellent and consistent images Embedded CARE program to minimize dose application Dynamic X.fluoro detector 43 cm x 43 cm (17” x 17”)
myExam Collimate	User-assisting system intelligence enabled by myExam 3D Camera¹ Virtual Collimation^1,6 Smart Virtual Ortho^1,6 Auto Thorax Collimation^1,6 Auto Long-Leg/Full-Spine Collimation^1,6
YSIO X.pree option	Ceiling-suspended second tube to enable radiography capabilities with myExam 3D Camera¹ 10.4" touch user interface MAXalign for automatic display of detector angle
X.wi-D detectors	Glassfree wireless radiography detectors with a high-resolution of 99 μm and IP67 rating X.wi-D 24¹: 24 cm x 30 cm X.wi-D 35¹: 43 cm x 35 cm X.wi-D 43¹: 43 cm x 43 cm
MAX detectors	Wireless radiography detectors with a resolution of 148 μm MAX wi-D¹: 35 cm x 43 cm MAX mini¹: 24 cm x 30 cm MAX static¹: 43 cm x 43 cm
Bucky wall stand	Bucky wall stand (BWS)¹ for standing radiography examinations with Automatic tube tracking Travel range from 31.5 cm (12.4”) to 175 cm (68.9”) Tilting +90°/-20° or non-tilting Optional with MAX static or for MAX wi-D, X.wi-D 43, or X.wi-D 35

LUMINOS Q.namix T is not commercially available in all countries. Due to regulatory reasons its future availability cannot be guaranteed. Any technical data contained on this website may vary within defined tolerances. Original images always lose a certain amount of detail when reproduced.

1 Optional

2 Down to a spatial resolution of 5.06 lp/mm. Based on a user survey with the leading radiologist of the University Hospital in Augsburg, Germany. The individual experience may vary

3 A IP67 fluid-ingress protection rating makes it easy to clean and prevents fluids like blood from entering it

4 Value includes the additional weight of potential accessory products

5 Only in combination with YSIO X.pree option

6 Only available with YSIO X.pree option and myExam 3D Camera
