Mammograms don’t need to be associated with pain, discomfort, and anxiety. The MAMMOMAT Revelation offers unique comfort features to create a soothing ambiance.
Embrace the Power of More
See more than you’ve ever been able to see before, giving cancer no place to hide.

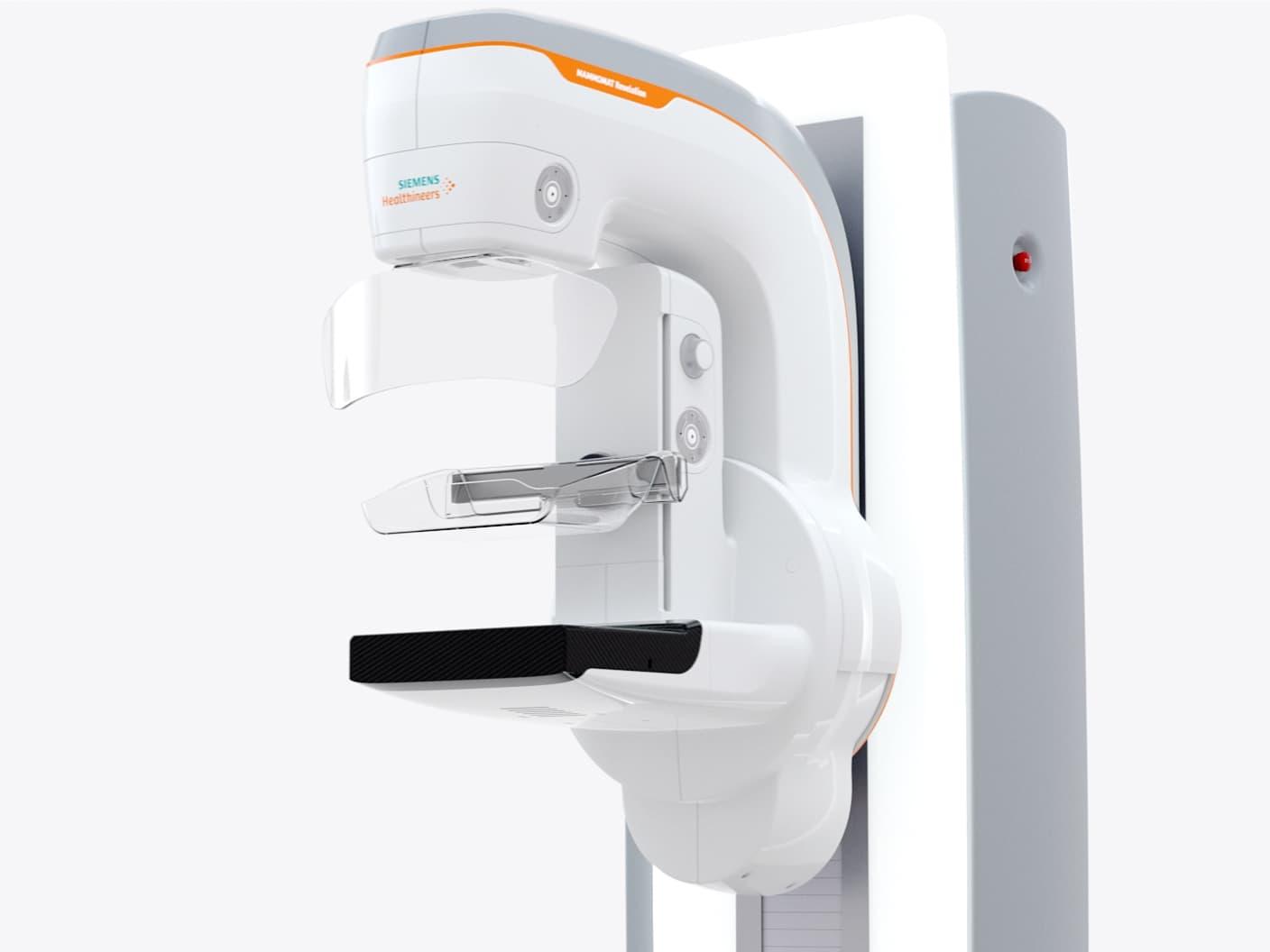

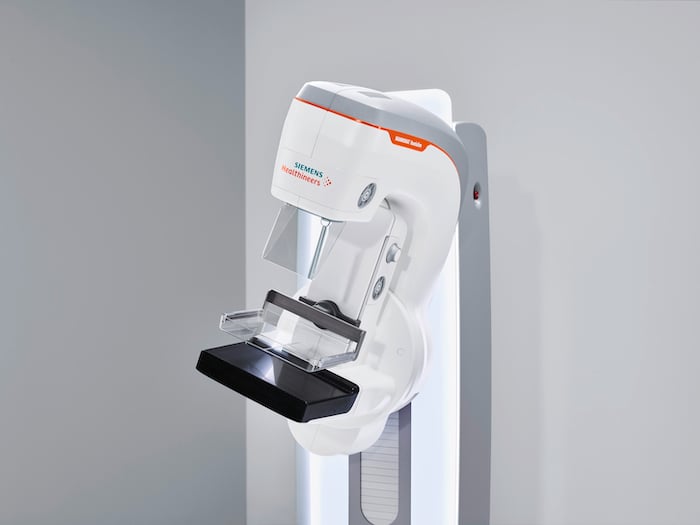

The MAMMOMAT Revelation mammography system from Siemens Healthineers is designed to give you more clinical certainty with its 50-degree wide-angle and synthetic options that offer additional insight with no additional dose. More information gives you greater accuracy and higher confidence in your diagnosis.
A Better Experience

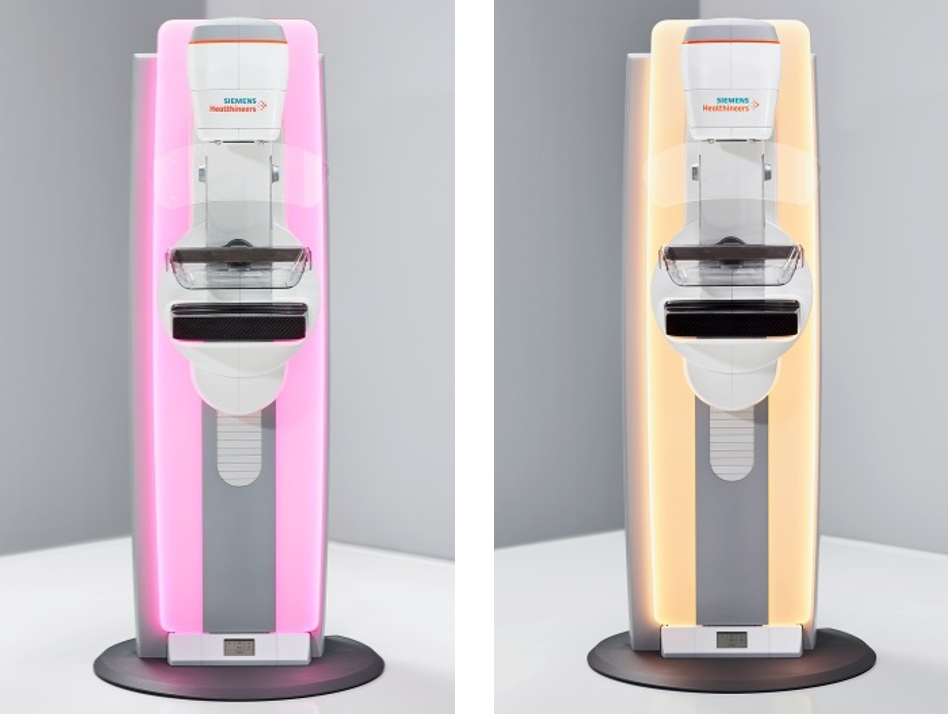

The MoodLight function bathes the examination room in soothing lights that help women unwind and remain at ease during their exam.
Wall decorations with Breast Health Moods create a relaxing and positive atmosphere that helps women feel safe and calm.

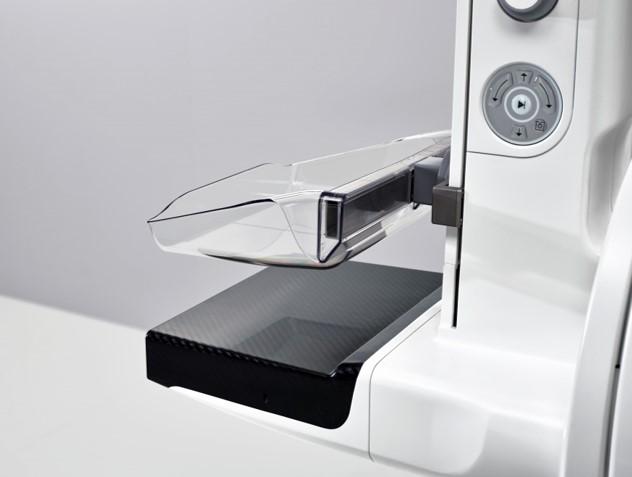

Designed to fit the physique of your patient’s anatomy, the soft-curved edges of the SoftComp Paddles offer higher patient comfort and easier positioning.
With the MAMMOMAT Revelation, there is no need for your patient to hold her breath during the scan, putting her more at ease.
Be more than a standard exam
OpComp and SoftSpeed
The MAMMOMAT Revelation’s personalized soft compression technology prevents unnecessary pain by adjusting to the anatomy of each patient’s breast:
- OpComp calculates and applies optimal compression
- SoftSpeed slows the compression paddle down as soon as it reaches the breast
- You have more time for proper positioning and less operator variation
AEC (Automatic Exposure Control) and OpDose®
Get the right dose for each patient, with optimal image results:
- AEC analyzes the complete breast to calculate the required dose for each breast individually
- The pectoral muscle is automatically excluded in MLO views
- OpDose determines exposure parameters depending on breast density and thickness
- Different dose levels further optimize exposure
- Five predefined dose levels available

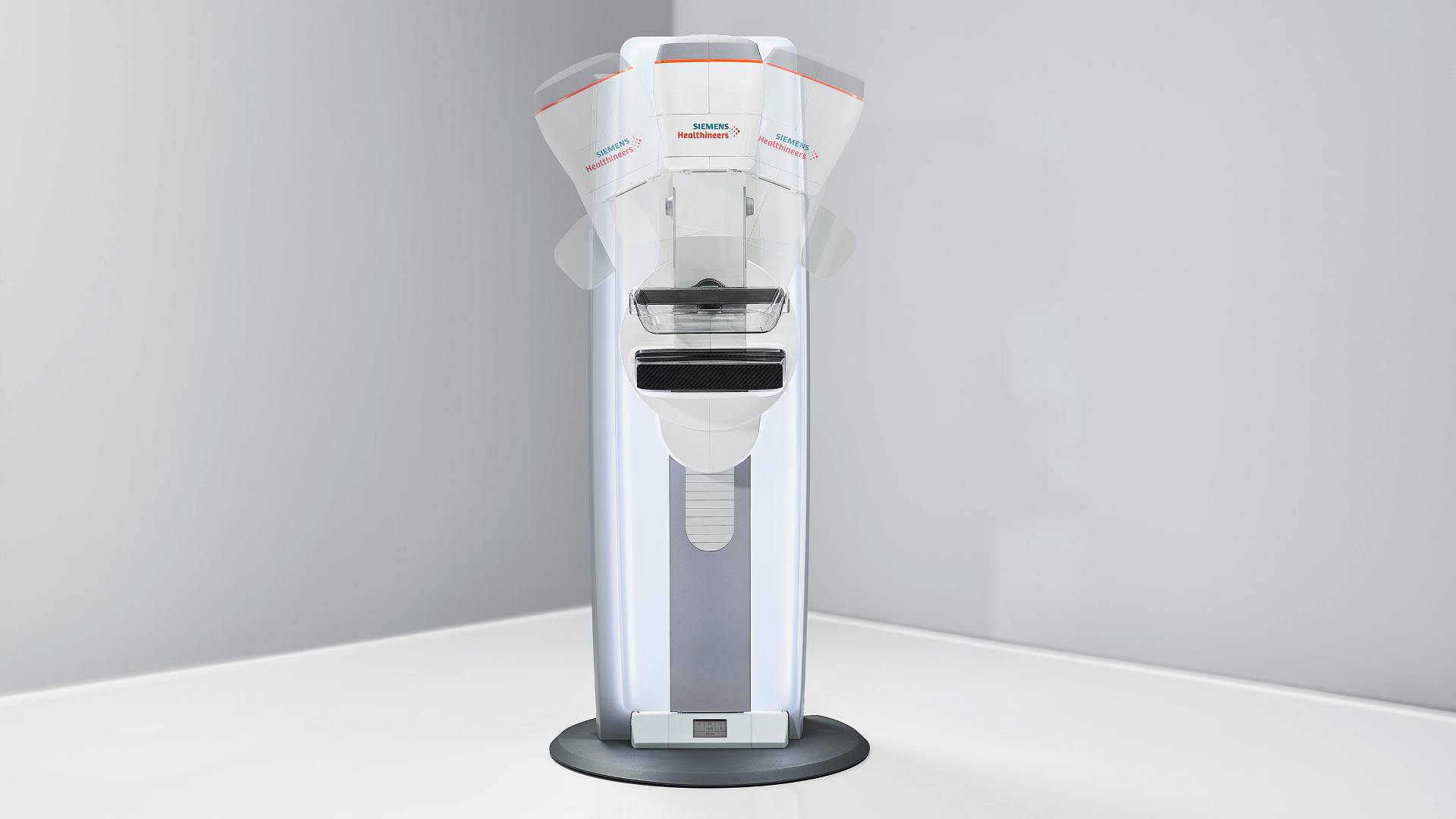

50° Wide-Angle Tomosynthesis
The MAMMOMAT Revelation with 50° Wide-Angle Tomosynthesis overcomes diagnostic challenges like overlapping tissue.
- Benefit from more accurate and earlier detection of breast cancer with the highest depth resolution on the market.
- Gain up to 3.5 times higher depth resolution compared to narrow-angle systems
- Enhance your workflows with 50° Wide-Angle Tomosynthesis and 50° Wide-Angle Biopsy

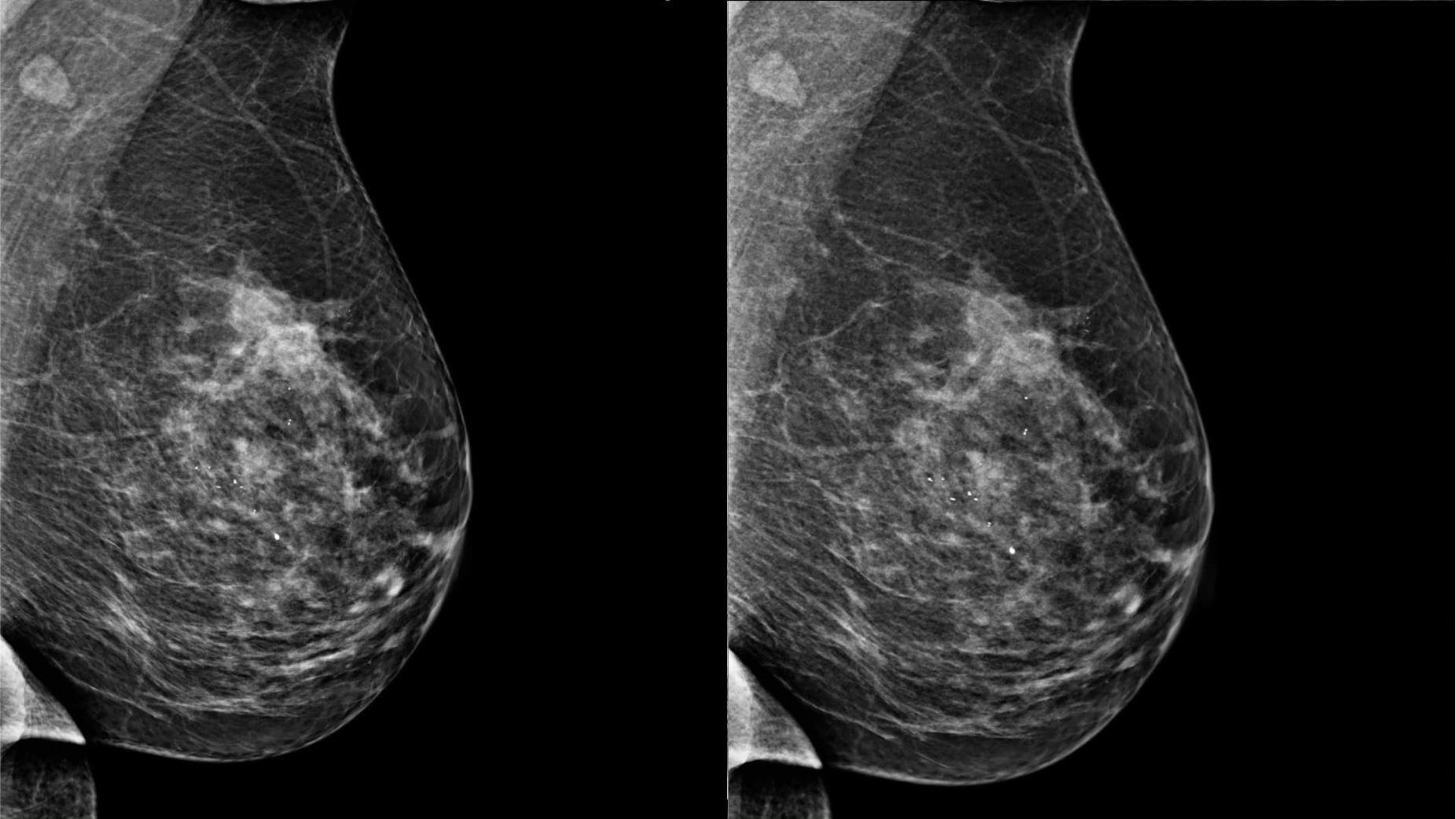

Insight 2D is a synthetic mammogram rendered from the tomosynthesis volume and offering an FFDM- like image impression, taking the 2D viewing and reading habits of radiologists into account:
- No additional dose
- Fast side-by-side comparison of both breasts
- Aids in assessing density
Insight 3D provides a synthetic rotating visualization for improved orientation in the tomo volume:
- Visualization of microcalcifications
- Boost your diagnostic confidence with this unique view
- Preferred for surgical planning
Tomo Spot compression
When you receive inconclusive cases, Tomo Spot compression helps assess screen-detected masses, asymmetries, architectural distortion and microcalcifications.
Benefit from 50° Wide-Angle Tomosynthesis with the SpotPlus compression paddle:
- Focus on a smaller area of the breast
- Increase compression in one spot while still showing the surrounding tissue
- Potentially avoid unnecessary biopsies
- Gain added confidence in tomosynthesis imaging

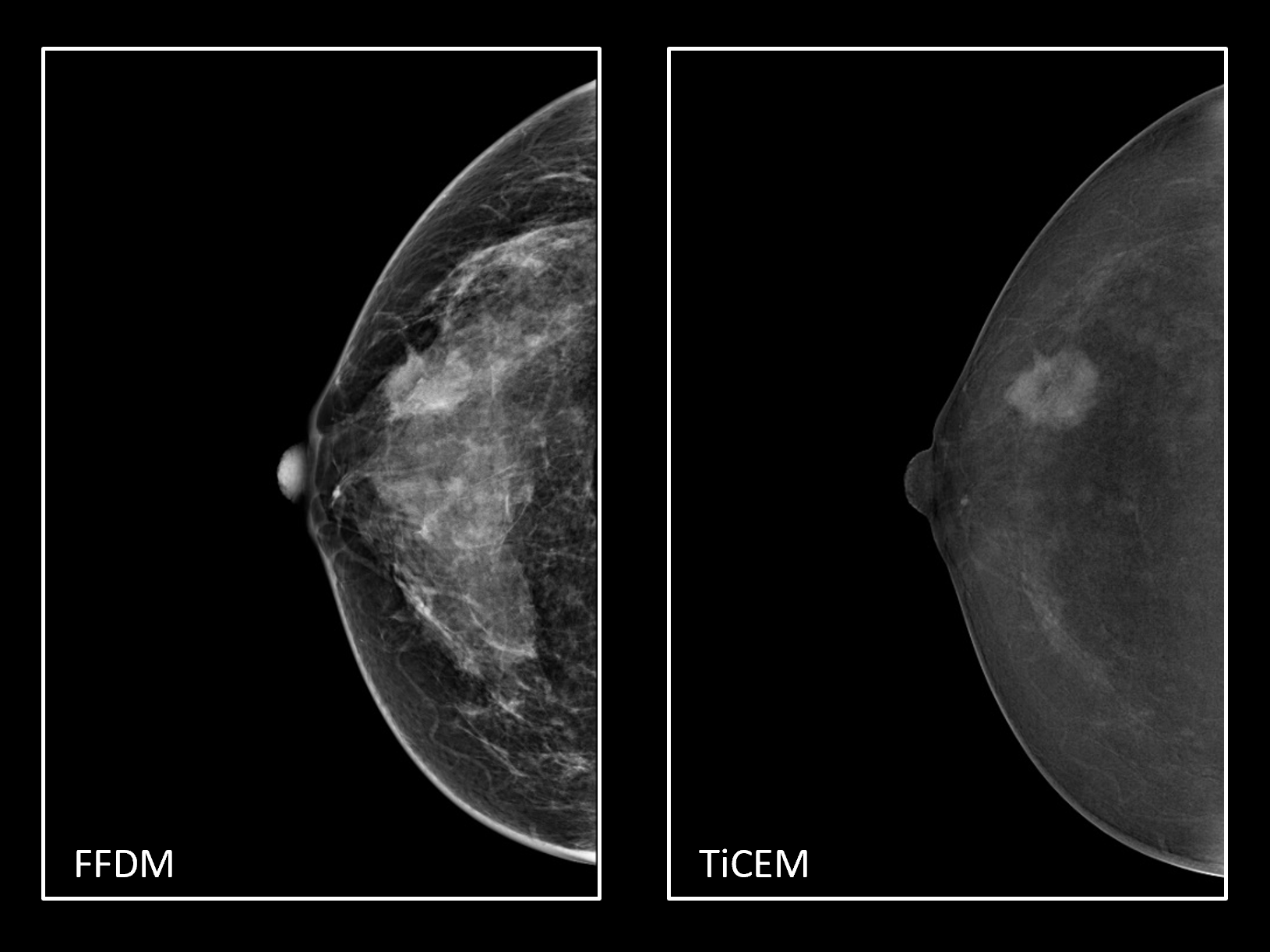

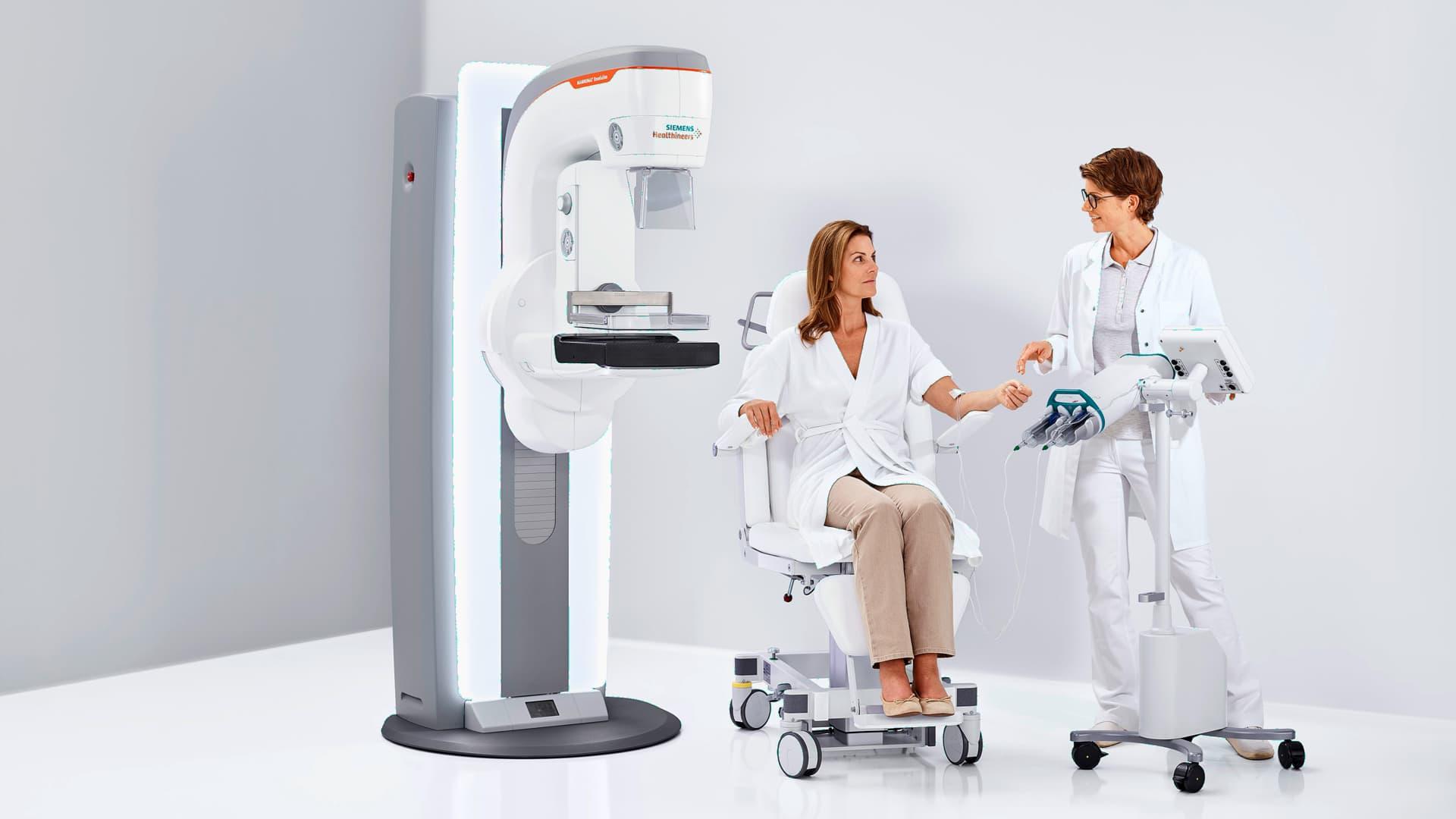

TiCEM (Titanium Contrast Enhanced Mammography)
Some challenging cases require additional diagnostic information for confident decision-making. One possible adjunct examination is MRI, which can be time-consuming, cost-intensive, and not always available or, at the very least, delayed. MAMMOMAT Revelation offers the option to integrate TiCEM as a cost-effective diagnostic alternative:
- The optimized titanium filter reduces C-ray tube load
- Can help you detect or rule out inconclusive lesions
Conduct More Exams Than Ever Before
The MAMMOMAT Revelation’s optimized workflows keep exams quick and seamless, allowing you to conduct more in a day.

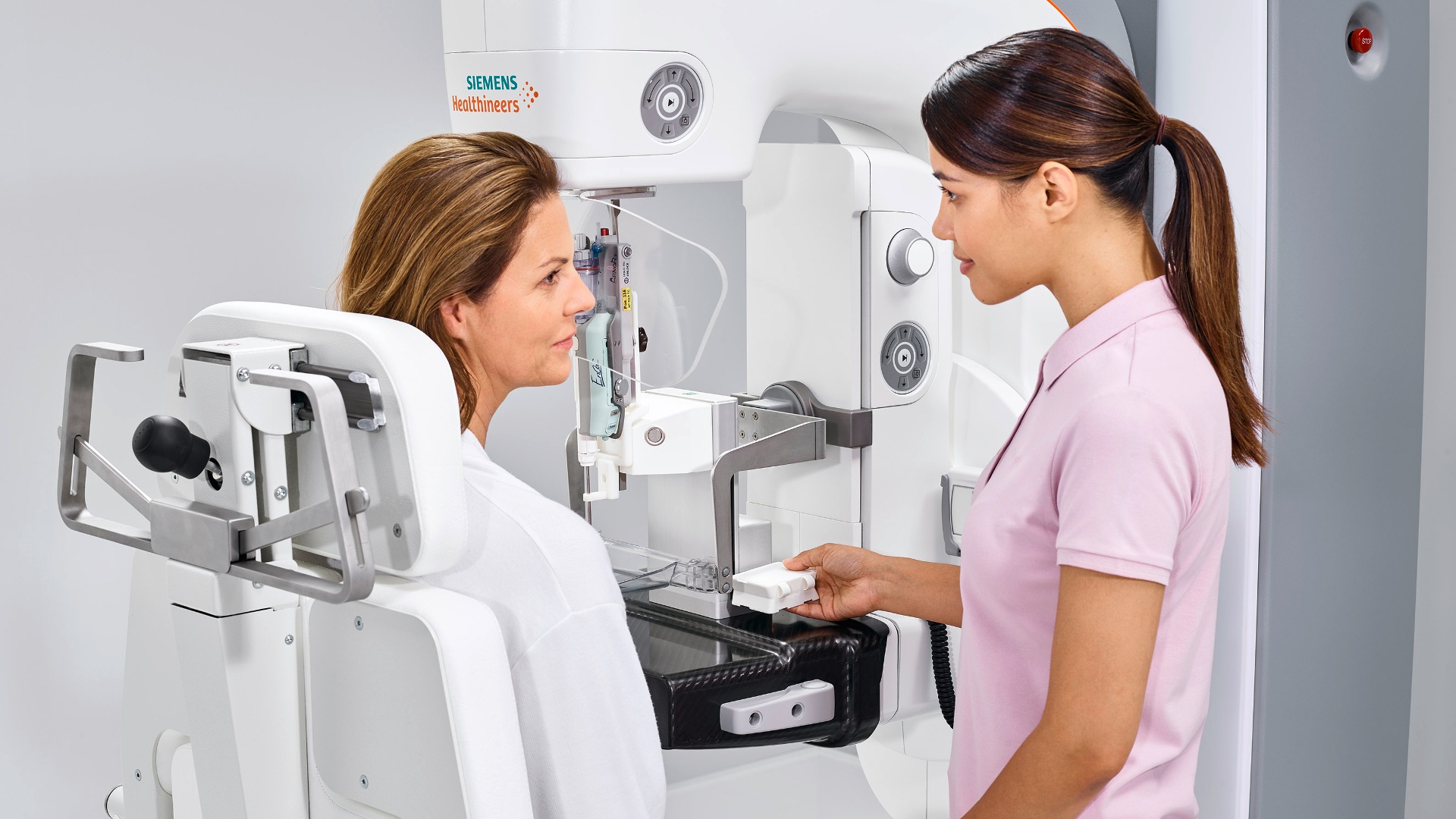

Biopsy workflow with InSpect
Receive your specimen scan within 20 seconds right on the mammography system with InSpect, the integrated specimen scanner, reducing the need for additional scan devices and optimized biopsy workflows.
Simultaneous image reconstruction in the background means uninterrupted acquisition. You and your patients won’t need to wait between views, allowing you to boost your efficiency with 6-minute exam times.
Reduce unnecessary steps in your screening workflows with an intuitive one-click workflow: The system moves to the predefined examination position with just one touch of a button.

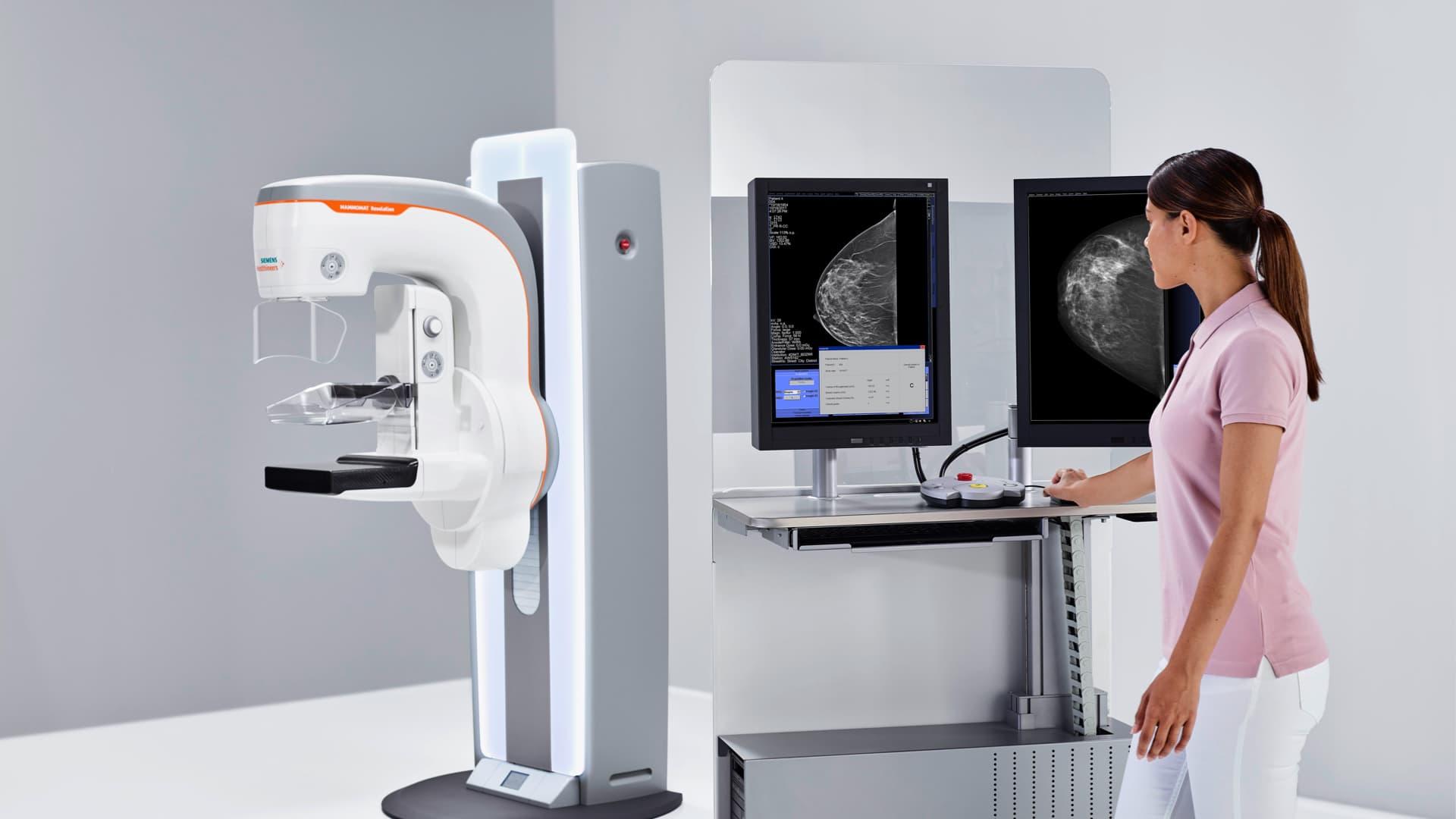

Insight BD – Breast Density Assessment
Objective classification supports you in instant risk stratification right at the acquisition workstation, creating more predicable workflows and personalized breast care.
Calibrate your system every 3 months in only five minutes with Turbo Calibration. Profit from 90% less system downtime caused by detector calibration.
teamplay Mammo Dashboard
teamplay Mammo Dashboard provides an intuitive overview of institution-specific KPIs to reveal workflow optimization potentials and support a high quality of care in breast imaging.
MAMMOVISTA B.smart covers the full spectrum of multimodal diagnostics from mammography to MRI and ultrasound. As an agile, vendor-neutral solution, it delivers exceptional performance for radiologists faced with more time-consuming tomosynthesis reading. Both Transpara and iCAD can be fully integrated with MAMMOVISTA B.smart for interactive clinical decision support.
Transpara® powered by Fusion AI™ generates impressive new results supported by clinical evidence worldwide. SmartSort Technology based on deep-learning case analysis and interactive lesion detection allows for evidence-based breast AI.
iCAD (CAD = Computer-aided detection)
iCAD's SecondLook Digital CAD analyzes images from Siemens Healthineers’s full-field digital mammography systems and generates CAD marks to highlight suspicious areas such as masses and microcalcifications.
Get More For Your Investment
High value system
Even the standard version of the MAMMOMAT Revelation is a high-end system. Equipped with a time- tested tungsten tube and a robust detector, you gain a reliable product with a very long lifetime. PRIME Technology is integrated in every system, allowing a dose reduction of up to 30% without compromising image quality.
|Detector technology||Amorphous Selenium (aSe)|
|Detector size||24 cm x 30 cm (9.5“ x 12“)|
|X-ray tube anode material||Tungsten|
|Filter||Anode-filter combinations: W/Rh, W/Ti|
|Swivel range||+180° to -180°, motorized, isocentric rotation
with preselectable rotation angle
Contact us today to learn more about how we can help you solve your most pressing challenges.
1 Compared to FFDM; PMA P140011/S001 & P140011/S003; Georgian et al. (2019): Can Digital Breast Tomosynthesis Replace Full-Field Digital Mammography? A Multireader, Multicase Study of Wide-Angle Tomosynthesis. AJR 2019, pp. 1-7. doi.org/10.2214/AJR.18.20294
2 Maldera et al. (2016): Digital breast tomosynthesis: Dose and image quality assessment. Physica Medica, pp. 1-12.
3 The statements by Siemens’ Healthineers customers described herein are based on results that were achieved in the customer's unique setting. Because there is no "typical" hospital or laboratory and many variables exist (e.g., hospital size, samples mix, case mix, level of IT and/or automation adoption) there can be no guarantee that other customers will achieve the same results.
4 Gonzàles-Huebra I, Malmierca P, Elizalde A, Etxano J, Vejborg I, Uhlenbrock D, Pina L. The accuracy of titanium contrast-enhanced mammography: a retrospective multicentric study. Acta radiol. 2020 [Ahead of Print].
5 90%: compared to former version VC10
6 teamplay Mammo Dashboard supports selected Siemens Mammography systems. teamplay Mammo Dashboard does not yet support all displayed functionalities, they are planned for upcoming versions.
Future availability of those functionalities cannot be guaranteed. Siemens Healthineers reserves the right to modify the design and specifications contained herein without prior notice
7 Compared to grid-based acquisition with MAMMOMAT Inspiration, depending on breast thickness - L.B. Larsen, A. Fieselmann, H. Pfaff, T. Mertelmeier Performance of grid-less digital mammography
acquisition technique for breast screening: analysis of 22,117 examinations Presentation B-1025 ECR 2015.
Please note that the following features are options: 50° Wide-Angle Tomosynthesis with Insight 2D and 3D, 50° Wide-Angle Biopsy with InSpect, Insight BD, TiCEM, Personalized Soft Compression, and MoodLight
