Biograph mMR

Simultaneous MR and PET Imaging

By combining MRI’s excellent soft-tissue resolution with PET’s ability to detect cellular metabolism into one scan, MR-PET changes the way you see disease — so that you can effectively treat disease.

The Biograph mMR supports you in making a confident diagnosis across Oncology, Neurology and Cardiology. Because the hybrid scanner delivers more imaging data, it also provides greater potential for you to:

- Accurately detect and assess abnormalities throughout the body
- Quickly identify an illness and prescribe the right treatment
- Schedule fewer appointments since both scans are done at once
- Expose patients to less radiation compared to PET/CT scans

MRI-Biograph-Mediaviewer_11_1800000000097872

The Biograph mMR sets a new standard.

As the only system that can simultaneously acquire MR and PET data across the whole body, it is a tremendous leap forward in imaging capabilities, opening new doors in the diagnosis and understanding of disease. It fully supports you in detection and planning through monitoring and follow-up.

A comprehensive diagnostic picture in only one scan

The Biograph mMR shows MR and PET data in virtually seamless spatial alignment. The MR acquisition can be used to correct for motion-related effects in PET, greatly improving image quality.

Spatial alignment

Precise alignment of MR and PET through simultaneous acquisition
One frame of reference
Minimal motion artifacts
Exact spatial registration

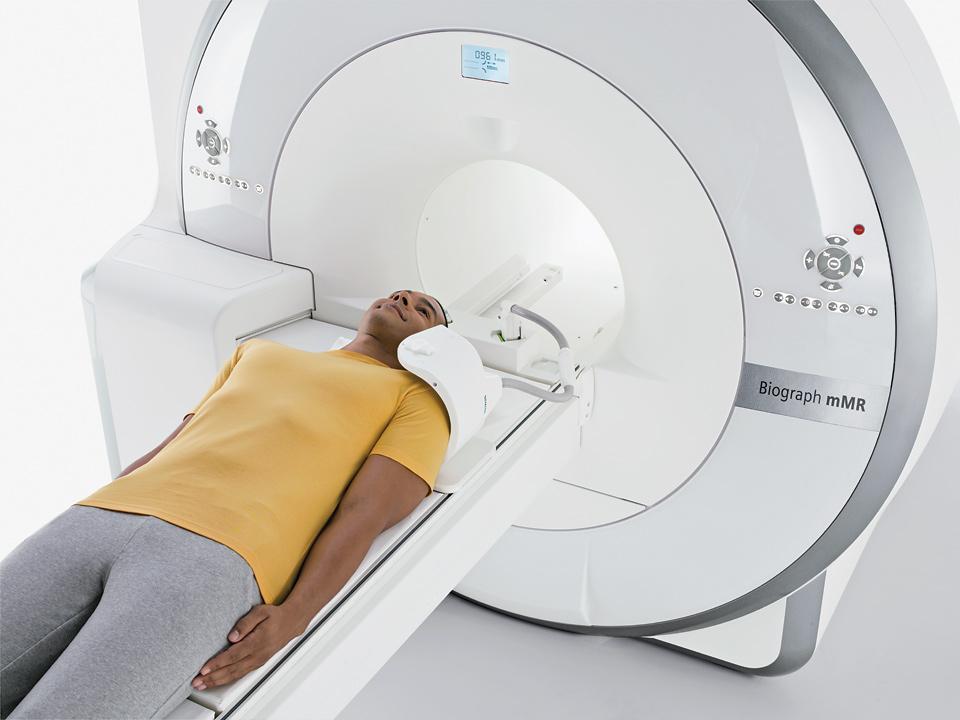

MRI-Biograph-Mediaviewer_12_1800000000097874

Minimize the effects of motion

Brilliant MR and PET images are achieved through gating tools that freeze motion
MR-based PET gating information helps improve the quality of PET images
Important for imaging moving organs like the liver

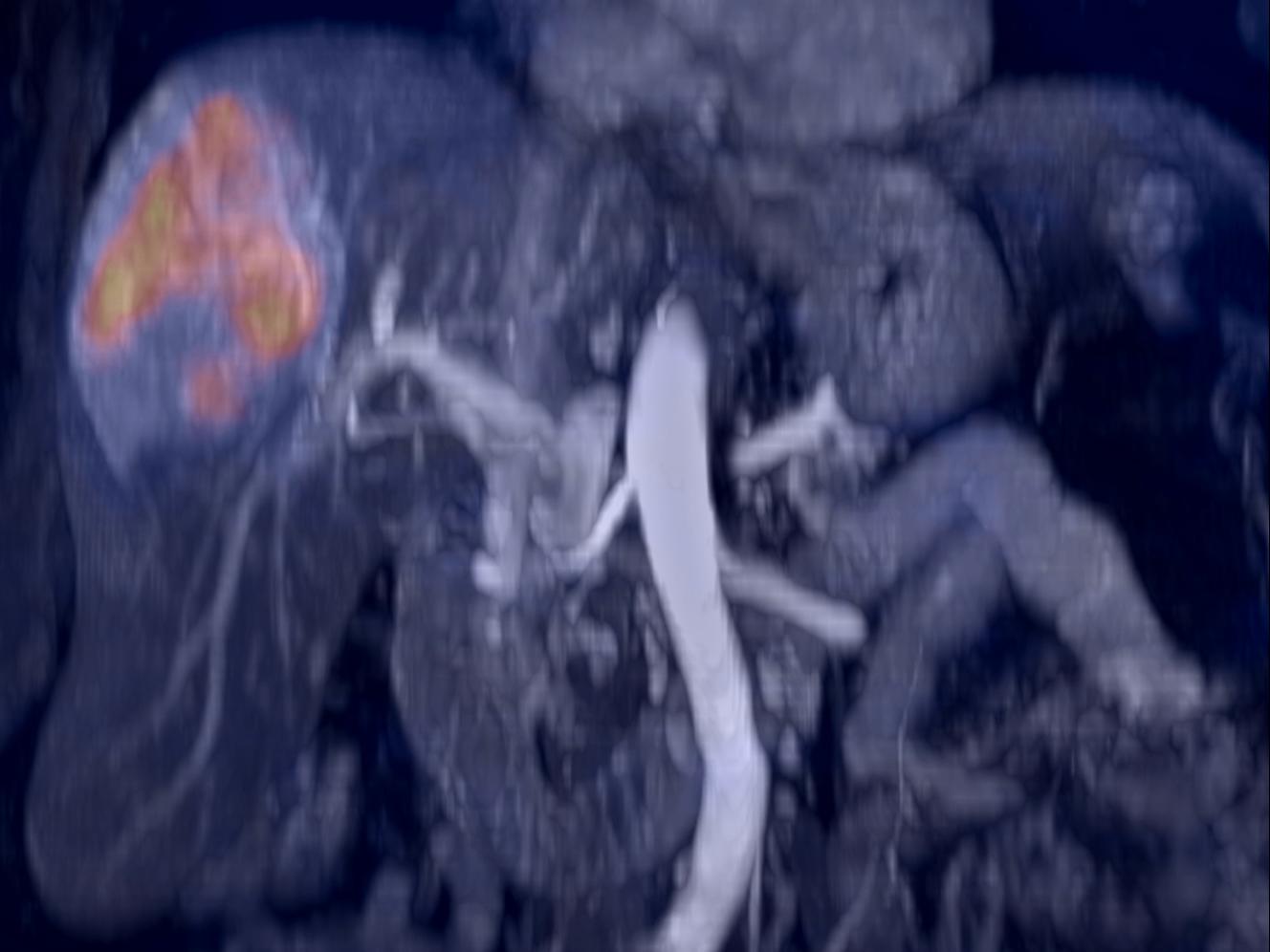

MRI-Biograph-mMR-Clinical-Abdominal_Pelvic_Oncology_1800000000082684

Temporal co-registration

Help ensure a better understanding of physiologic processes
Capture metabolic and functional processes at the exact same time
Precisely and accurately assess disease

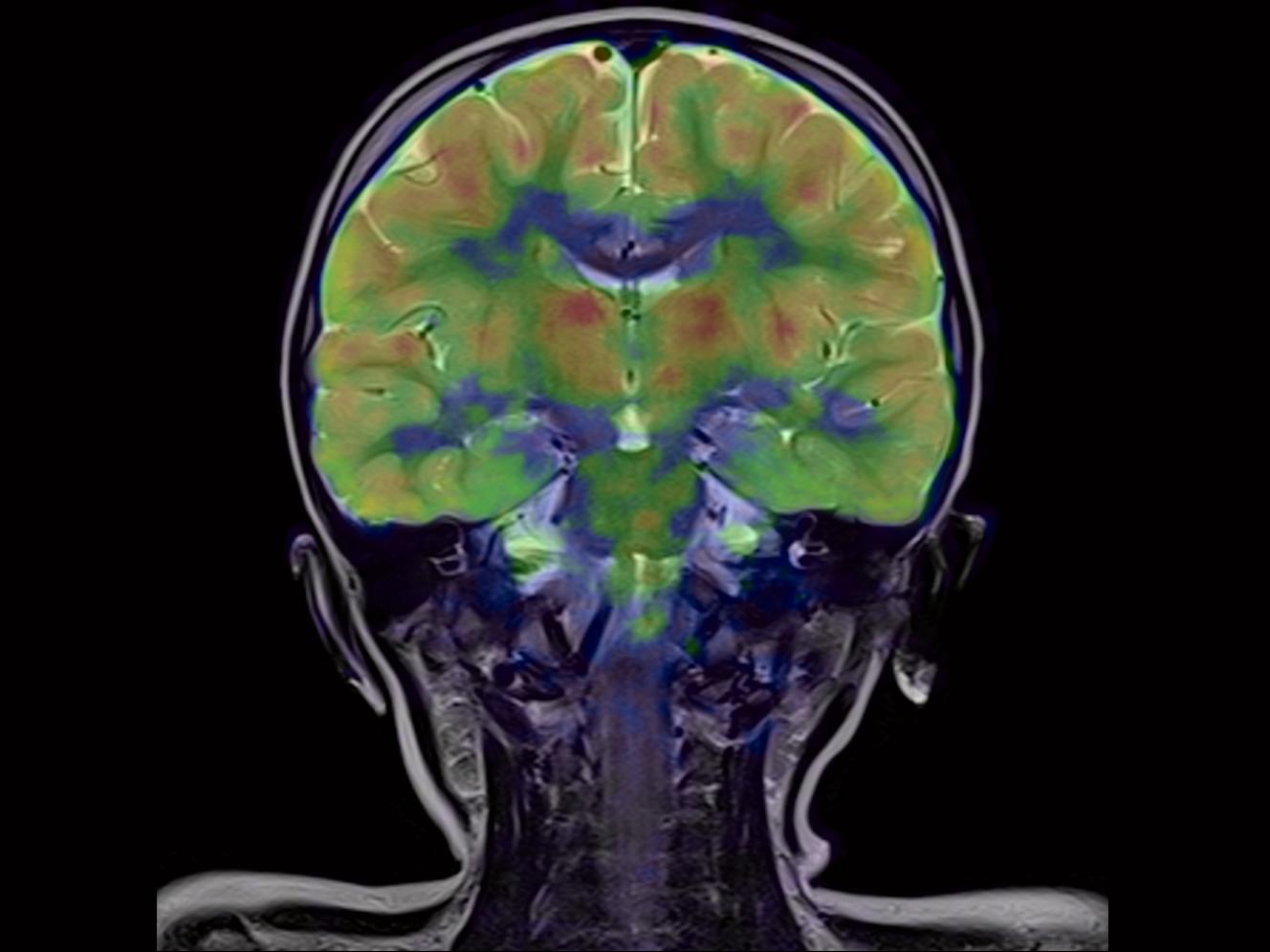

MRI-Biograph-mMR-Clinical-Pediatric_Oncology_1800000000082691

One exam. One room. One whole body solution

Siting one system instead of two can bring you significant practical benefits, while patients and staff alike enjoy shorter, more comprehensive exams.

MRI-Biograph-Mediaviewer_07_1800000000084163

One streamlined exam boosts your productivity

Shorten acquisition times
Two exams in one can help you achieve faster diagnoses
Get faster results for referring physicians

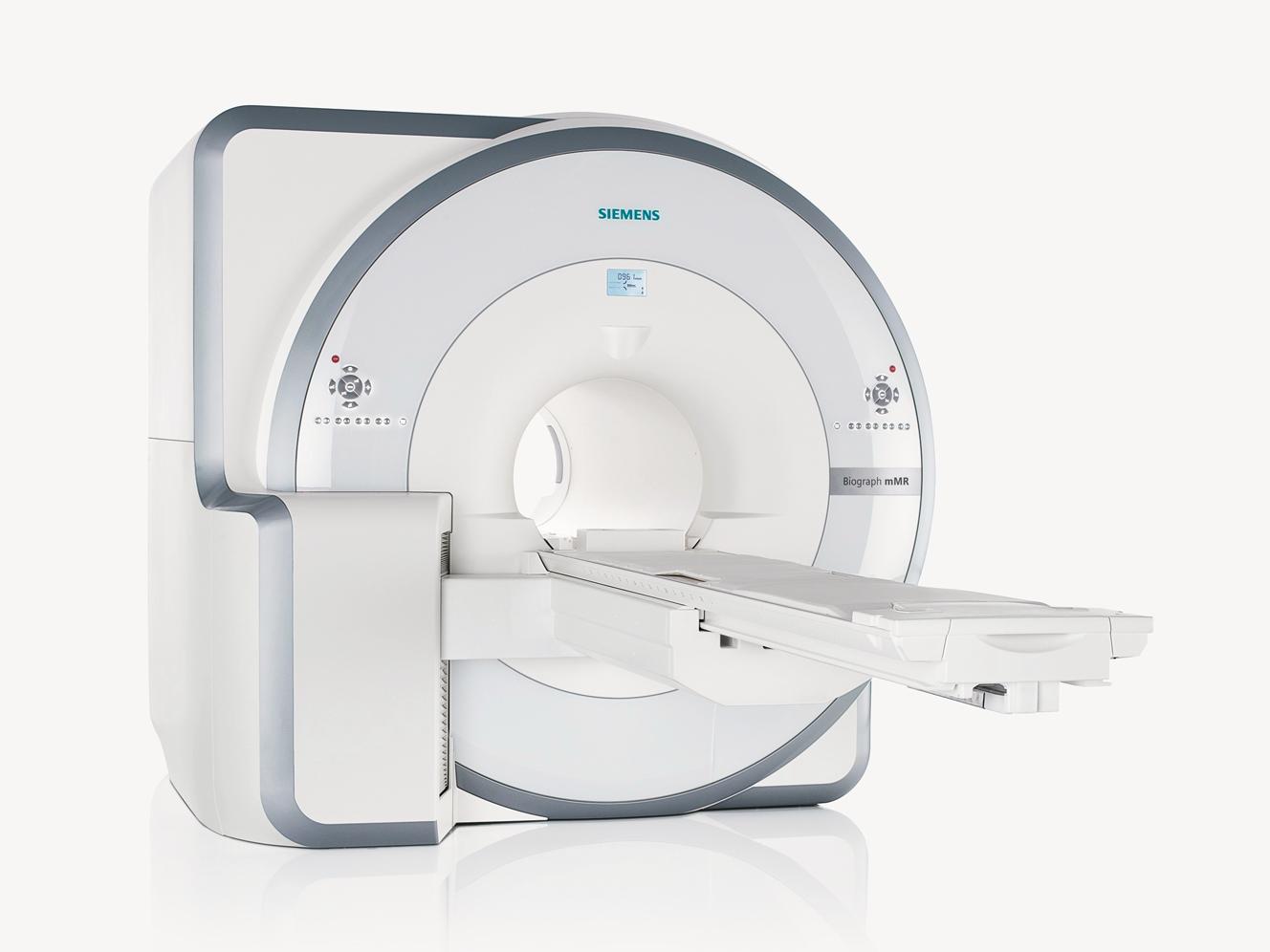

MRI-Biograph-mMR-Mediaviewer_02_1800000000082126

Shorter exams and low radiation exposure

Position once for both MR and PET exams
No coil changing or repositioning thanks to Tim integrated coil technology
Reduce radiation exposure compared to other imaging modalities

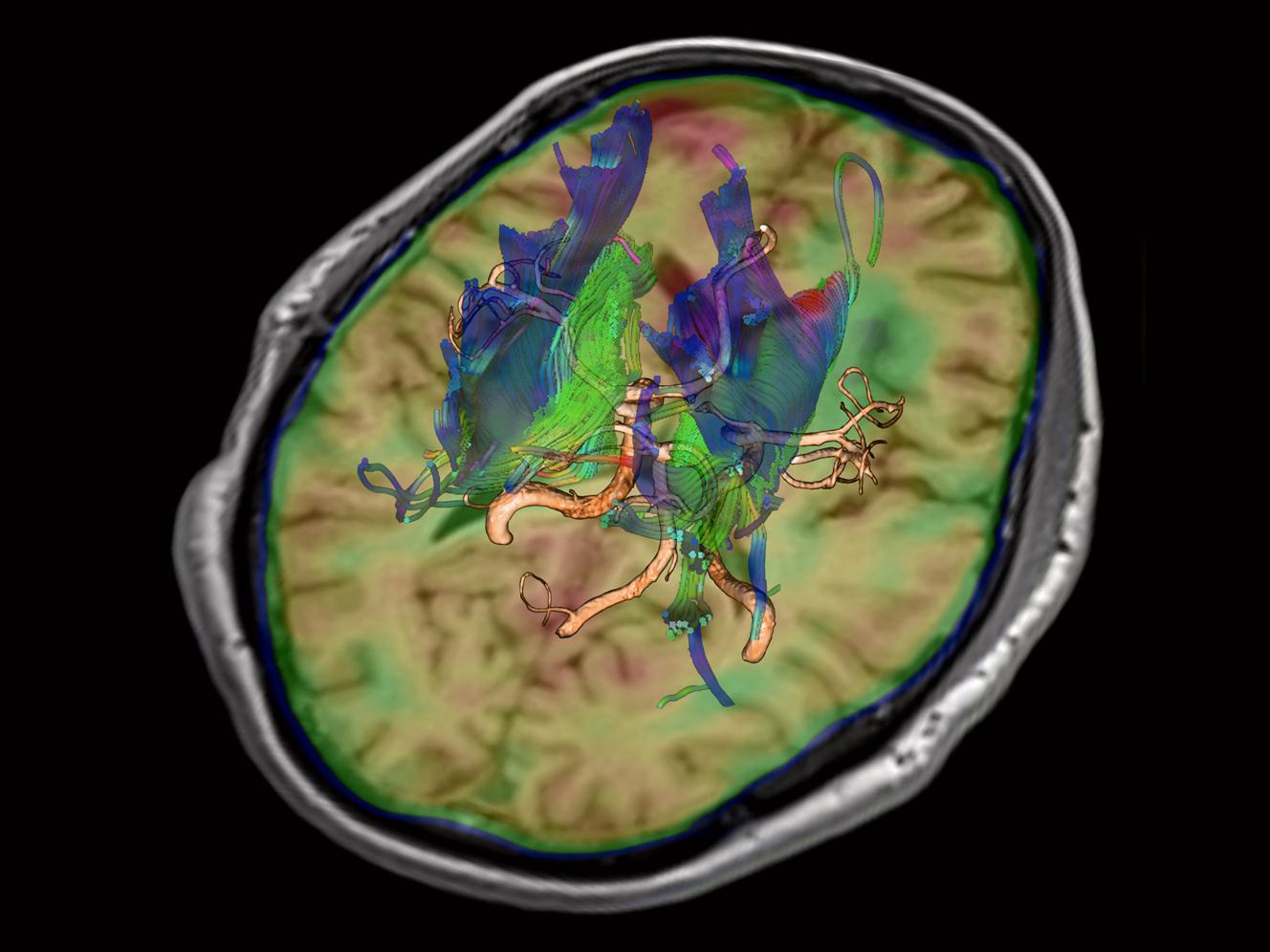

MRI-Biograph-mMR-Clinical-_Neurology_Imaging_1800000000082687

Significant cost reduction

One room for MR and PET
One cooling system
One operator
Potential for more patients per day

MRI-Biograph-mMR-Clinical-syngommr_1800000000180471

Be at the forefront of diagnostics and research with the Biograph mMR

Meet the needs of demanding high-end research
Realize synergies in routine clinical application
Get support in all aspects of MR and PET development
Experience new opportunities in funding, grants, donations and publishing
Attract the attention of referring physicians
Differentiate your facility in a powerful way

syngo.via and Biograph mMR are one

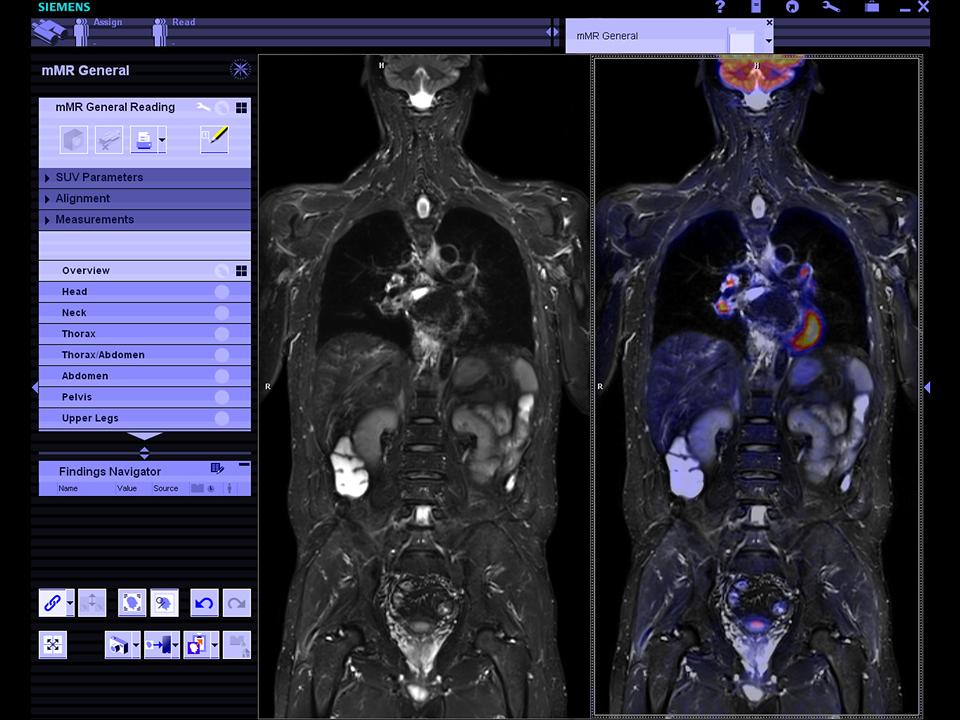

The Biograph mMR provides MR and PET data as one dataset — molecular MR acquisition data. Every Biograph mMR includes syngo.mMR General, the advanced visualization software application tool based on syngo.via. This allows you to fully utilize one dataset in your clinical environment.

The Biograph mMR is designed to give you the ability to meet the needs of demanding high-end research. The new system provides technology to tackle the toughest challenges the world of healthcare faces today.

MRI-Biograph-mMR-Clinical-Oncology_Imaging_1800000000082689

Technical Details

As the world leader in both MRI and PET, Siemens possesses the engineering expertise to fully integrate the two.

We've designed the first PET detectors that allow the integration of whole-body MR and PET - without compromising the performance of either modality

Field strength	3 Tesla
Bore size	60 cm
System length	199 cm
System weight (in operation)	9.0 tons
Minimum room size	33 m²
RF Tim	[102 x 18] [102 x 32]
Gradient strength	MQ Gradients (45 mT/m @ 200 T/m/s)
Helium consumption	Zero helium boil-off technology

Overview Technical Details

Siemens' technologies

MR-compatible PET detectors: unique mMR block detector architecture includes integrated cooling features to provide optimal PET performance, as well as specialized shielding to virtually eliminate magnetic field interference in the PET data processing chain.
Tim: optimized design for Biograph mMR and low-attenuation materials in Tim mMR coils and the mMR Tim Table minimize attenuation of the PET signals. This helps improve the consistency of PET data results.

PET specifications

The integrated state-of-the art PET detectors and detector cooling channels ensure optimal PET performance in Biograph mMR.

PET Detectors
Crystal material	LSO
Crystal element dimension	4 x 4 x 20 mm
NEMA 2007 - Transverse spatial resolution	9.0 tons
FWHM @ 1 cm	4.4 mm
Sensitivity	13.2 cps/kBq
Peak NEC rate (@ 21.8 kBq/cc)	175 kcps
Axial FoV for PET	258 mm

Magnet technology

Biograph mMR includes TrueForm Magnet Design. This results in better image quality by reducing the unusable edges in the images as well as better fat saturation for the whole area covered in a scan.

Field strength	3 Tesla
Bore size	60 cm
Magnet length	163 cm
Helium consumption	Zero helium boil-off technology

Gradient system

Biograph mMR includes an actively shielded whole-body gradient system for excellent spatial and temporal resolution, enabling patient-specific shimming.

Gradients	MQ Gradients: 45 mT/m
Slew rate	MQ Gradients: 200 T/m/s

RF technology

Unique TrueForm RF design includes innovative techniques in the RF excitation hardware as well as new application and processing features.

Uniform RF distribution in all body regions
Optimized amplitude and phase transmission settings
Homogeneous B1 distribution

Siting and installation

Siting one system instead of two allows a significant reduction in costs.

Biograph mMR requires an installation space similar to a conventional 3T MRI system, thus making the most of your precious space. The benefits of Biograph mMR are obvious: one room, one cooling system, one operator.

System length	199 cm
System weight (in operation)	9.0 tons
Minimum room size	33 m²
