The Self-Driving Mobile 3D C-arm

Move like never before: Discover the CIARTIC Move, a new class of self-driving mobile 3D C-arm. The CIARTIC Move has the potential to address operational challenges in intraoperative imaging caused by staff shortages and overloaded surgical teams in the OR1.



The CIARTIC Move unburdens OR teams by automating intraoperative imaging workflows. It effectively reduces the time, effort and workforce capacity needed to move and position the system1.

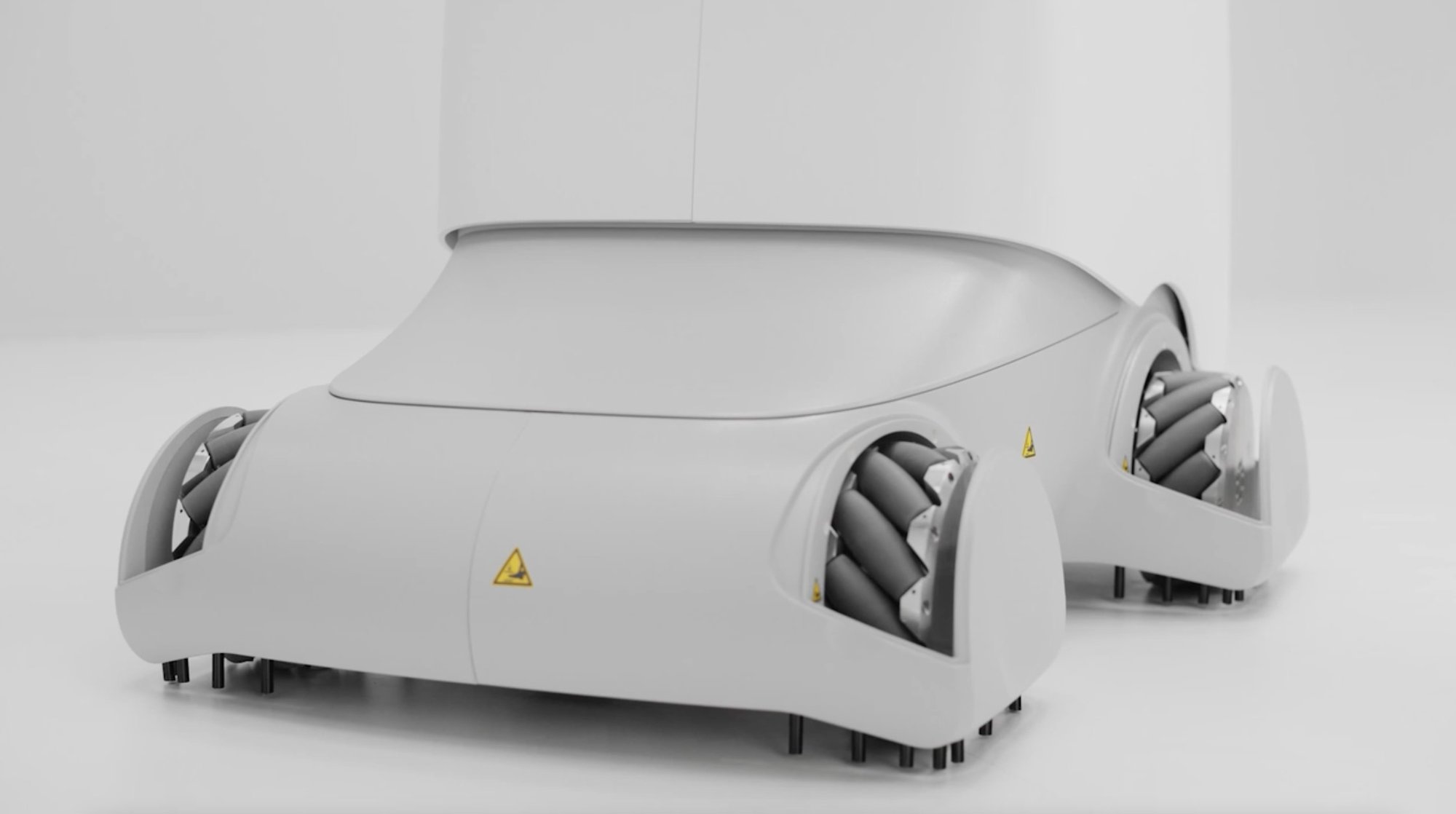

Self-driving capabilities

CIARTIC Move is a self-driving mobile 3D C-arm equipped with a fully motorized chassis featuring holonomic wheels that allow floating-like movements in every direction. The motorized chassis is a key enabler for automation features.

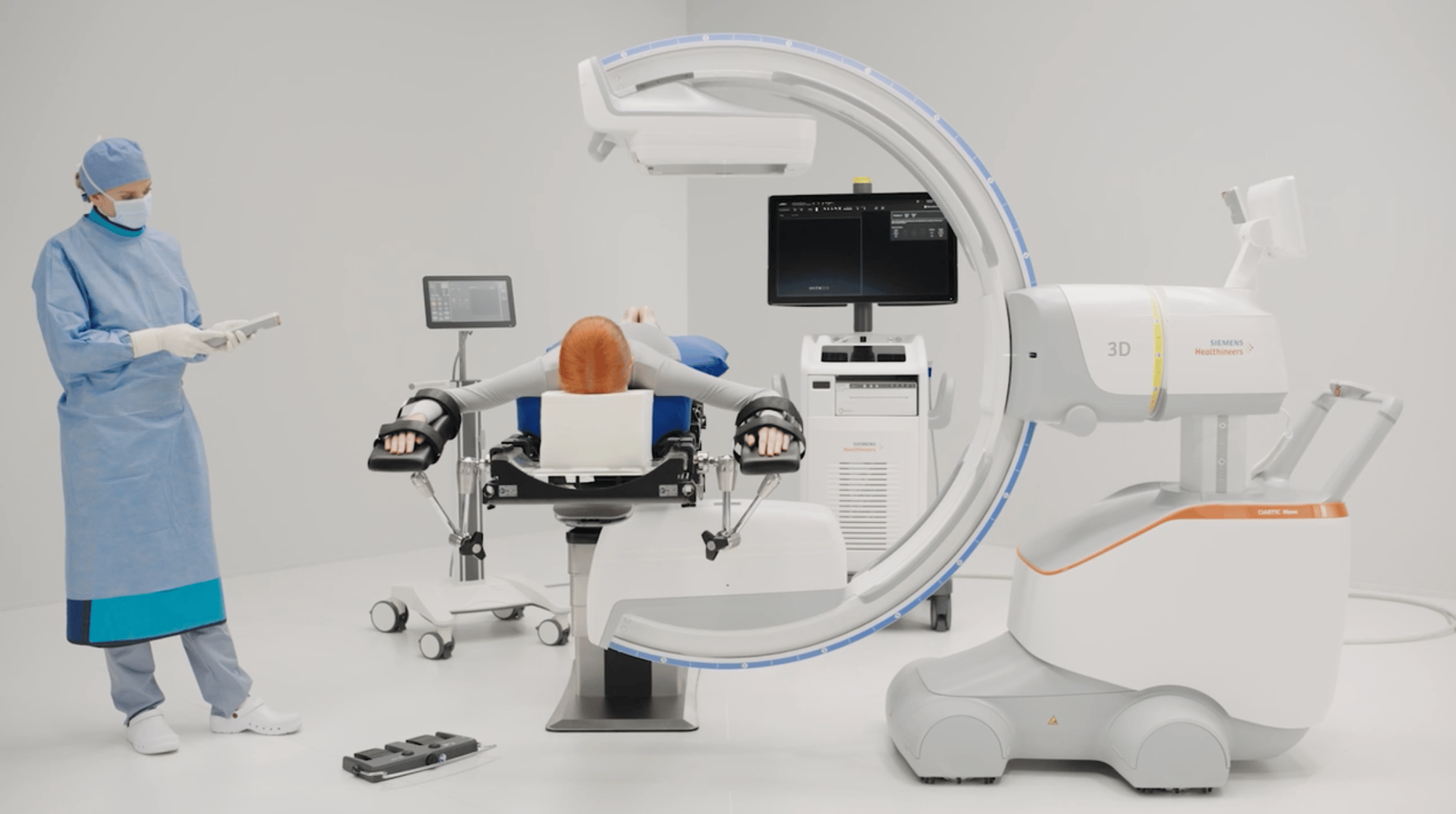

Automated workflows

Position Assist

With Position Assist, you can easily store up to 12 procedure-specific system positions and recall them at any time. This can help accelerate your intraoperative imaging.

Park Assist

Independently park your C-arm, then bring it back to its previous position at the OR table with no manual interaction or physical effort.

ISO Assist

When you move the detector up or down, ISO Assist performs intelligent compensatory movements to keep the anatomy of interest in focus.

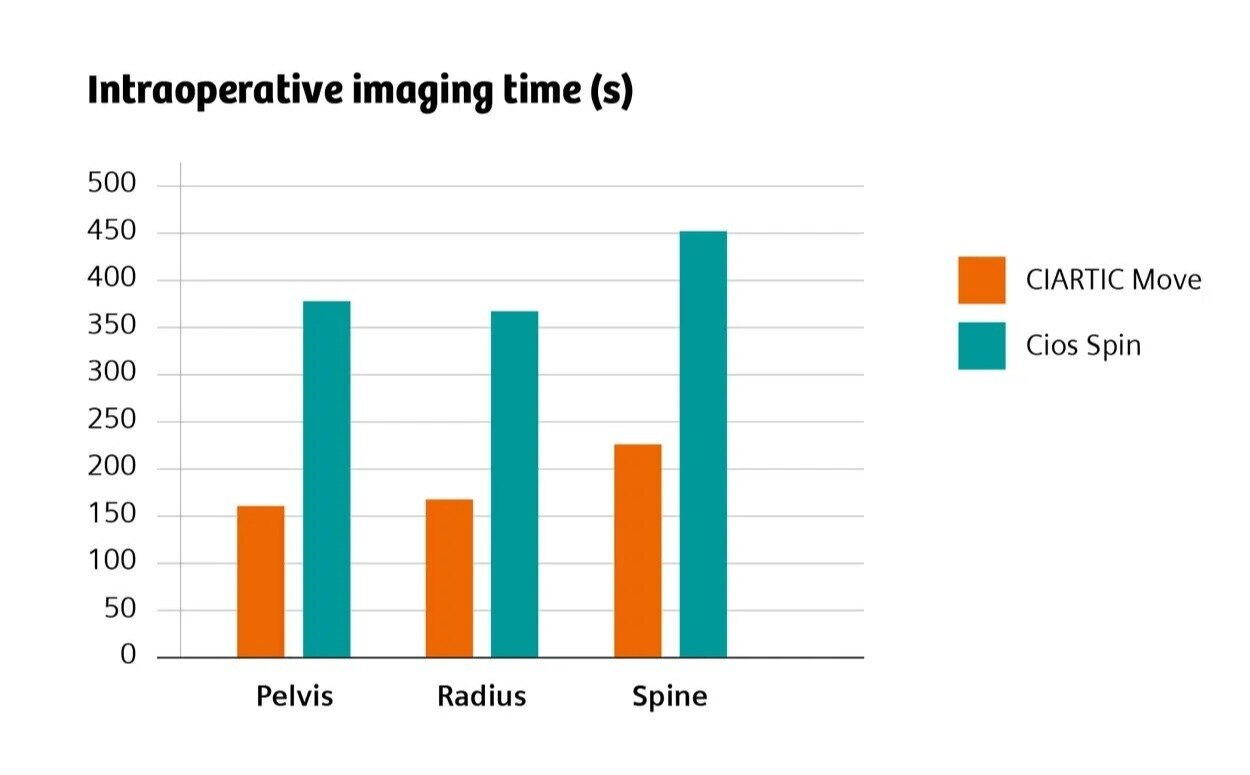

Save intraoperative imaging time

The CIARTIC Move has already proven its benefits in a preclinical study1: The system enabled significant time savings for all three anatomical regions included in the study (pelvis, spine, distal radius).

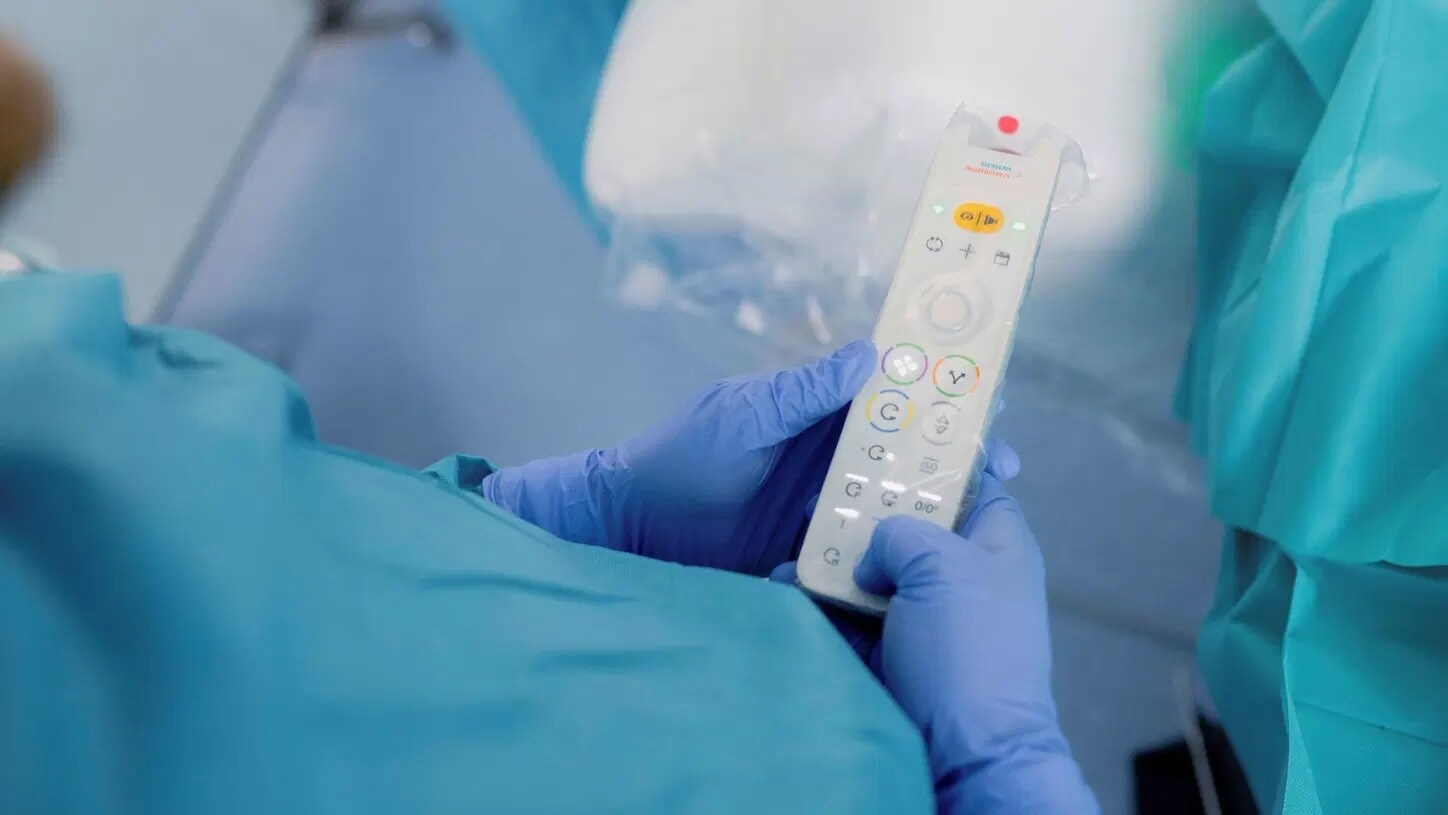

Independent C-arm operation

With Smart Control, a single person can operate the system remotely. The wireless Smart Control allows you to do so even from inside the sterile field.2

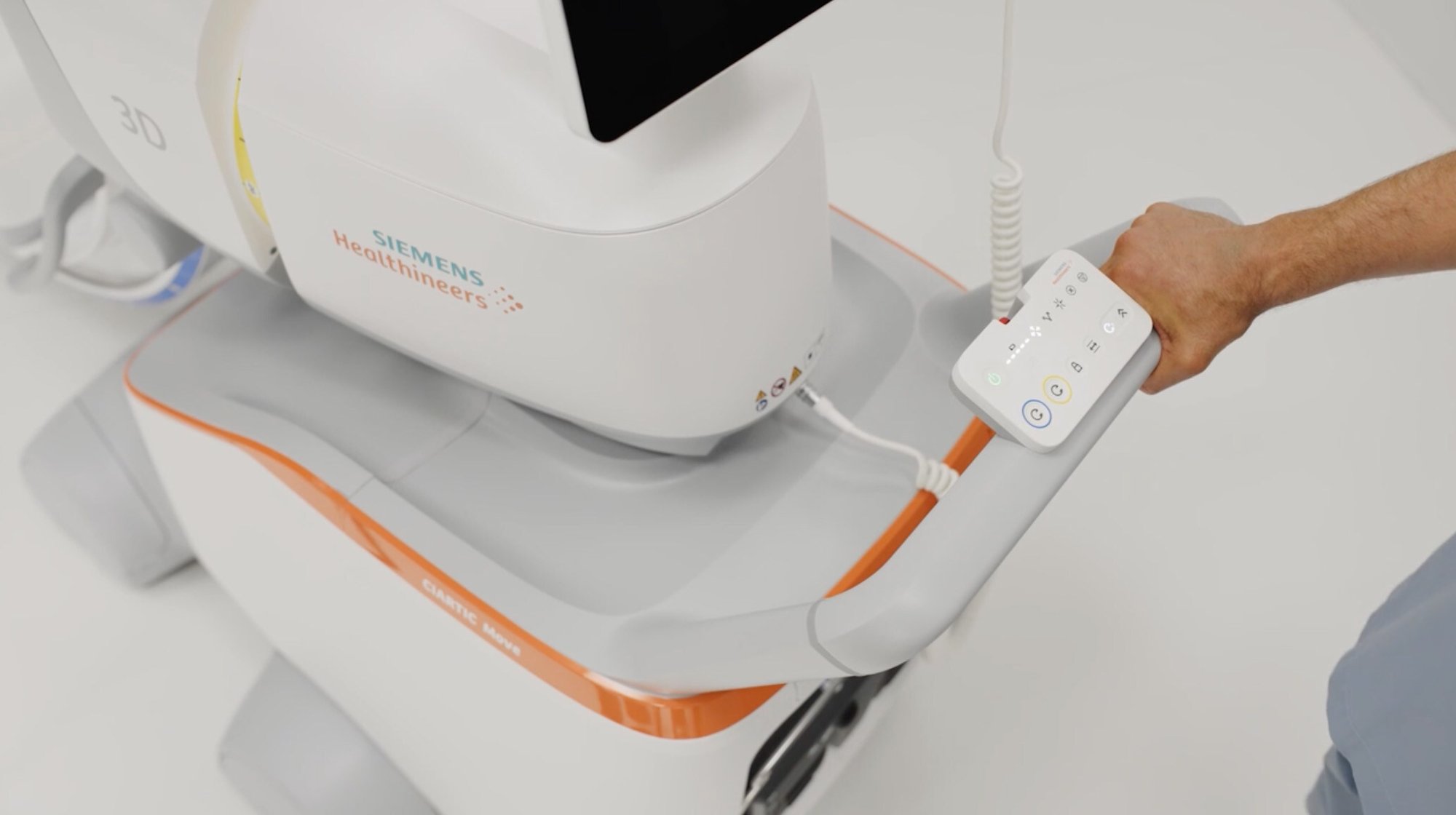

Effortless handling

Touch-sense handles allow effortless, motor-assisted movements during procedures and make it easier to steer the system between operating rooms.

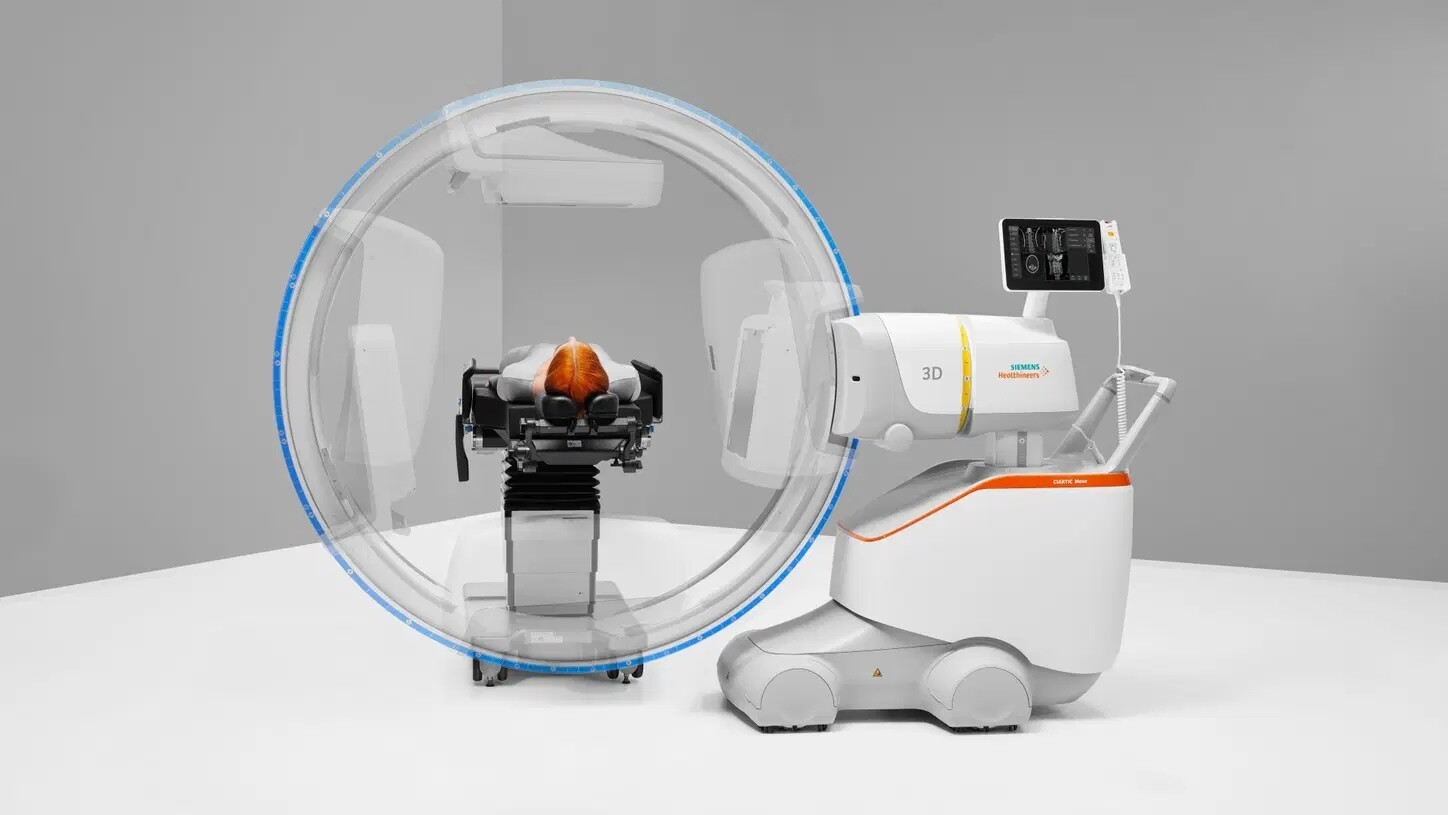

Intraoperative 2D / 3D imaging

Benefit from precise 2D and 3D visualization of anatomical structures and metallic objects with excellent image quality.

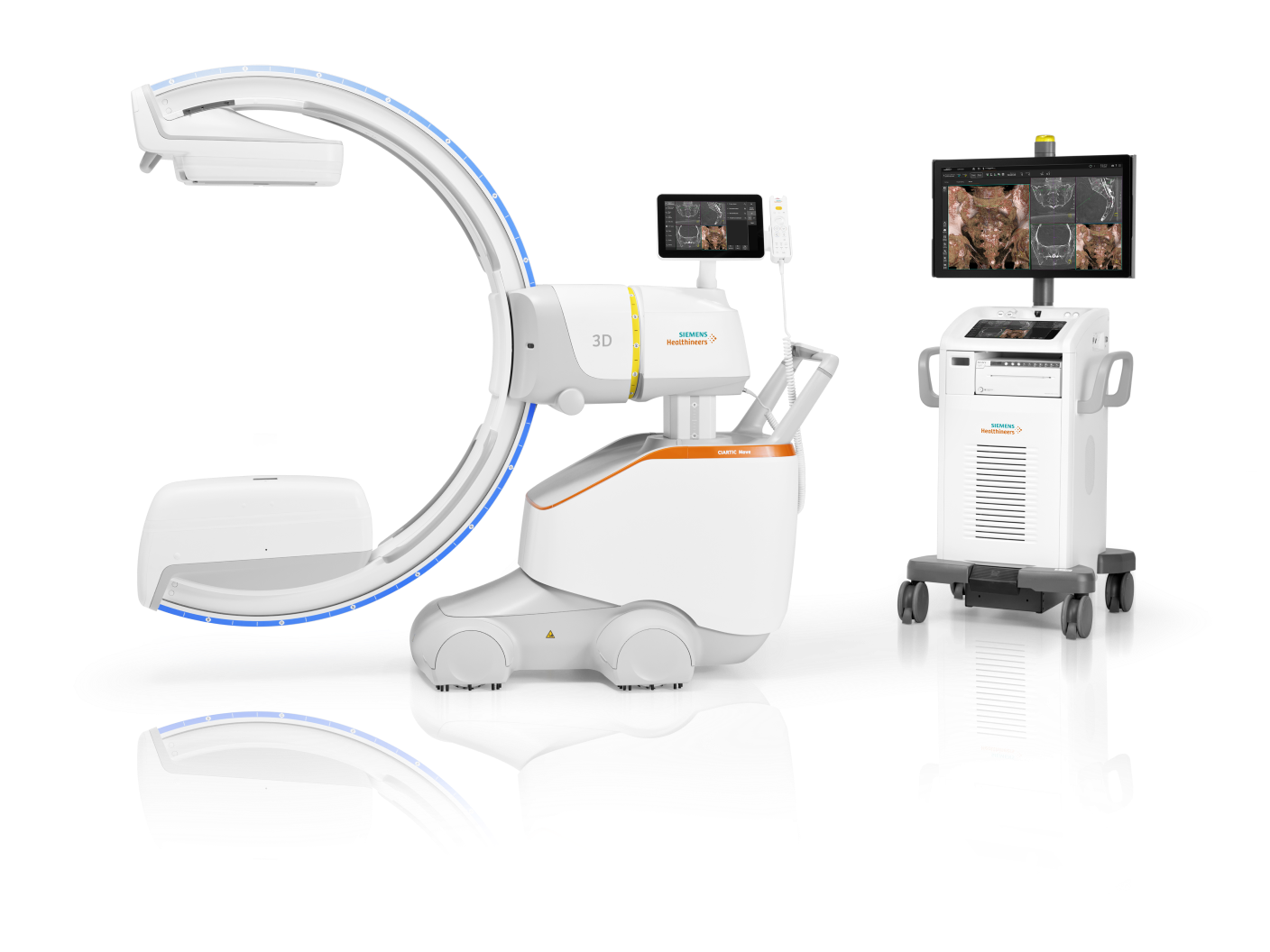

Technical Details

CIARTIC Move automates and accelerates intraoperative imaging workflows.
1 Learn more about what is inside.

System specification:
Detector technology CMOS flat detector
Input field (active field; full format) 12” x 12” (30 x 30 cm)
Image resolution 1952 x 1952 pixels
Power management Peak power 25 kW
Energy Storage Unit (ESU)3
Active cooling
Orbital movement 200°
Immersion depth 28.6“ (72.6 cm)
Free space 36.3“ (92.4 cm)
Retina 3D imaging:
Scan technology Isocentric scan technology
Projections for 3D reconstruction 100, 200, 400
Retina 3D volume 6.3’’ x 6.3’’ x 6.3’’ (16 x 16 x 16 cm); resolution: 512 x 512 x 512 voxels
3D volume for image-based registration of navigation markers 10’’ x 10’’ x 6.3’’ (16 x 16 x 16 cm); resolution: 800 x 800 x 512 voxels
Scan speed 30 seconds
2D power scan option Yes
Metal artifact reduction Yes3
Screw Scout Yes3
Navigation interface NaviLink 3D3
Clinical workflow support:
Operating modes Single Image
Fluoroscopy High Level
Subtraction / Roadmap3
Digital Cine Mode3
DICOM 3.0 services Yes3
Data transfer LAN / WLAN1 / USB / DVD
Image storage  300,000 images
CARE program (Combined Applications to Reduce Exposure) Yes
Interface for hosting certified partner applications OpenApps
System control:
Brakes control Electromagnetic brakes
Table-side control Yes3
Motorization Yes
Laser light localizer Yes3(tube, flat detector, lateral; green)
Wireless footswitch  Yes3

Contact us today to learn more about how we can help you solve your most pressing challenges.

CIARTIC Move is not available in all countries. Its future availability cannot be guaranteed. 

The statements by Siemens Healthineers’ customers described herein are based on results that were achieved in the customer's unique setting. Because there is no “typical” hospital or laboratory and many variables exist (e.g., hospital size, samples mix, case mix, level of IT and/or automation adoption) there can be no guarantee that other customers will achieve the same results.

1 Proven in a cadaveric setting with 10 human specimens, with orthopedic trauma and spine surgeons, compared with Cios

2 Proven with orthopedic trauma surgeons in a cadaveric setting using 10 human specimens, compared with Cios

3 Option.
