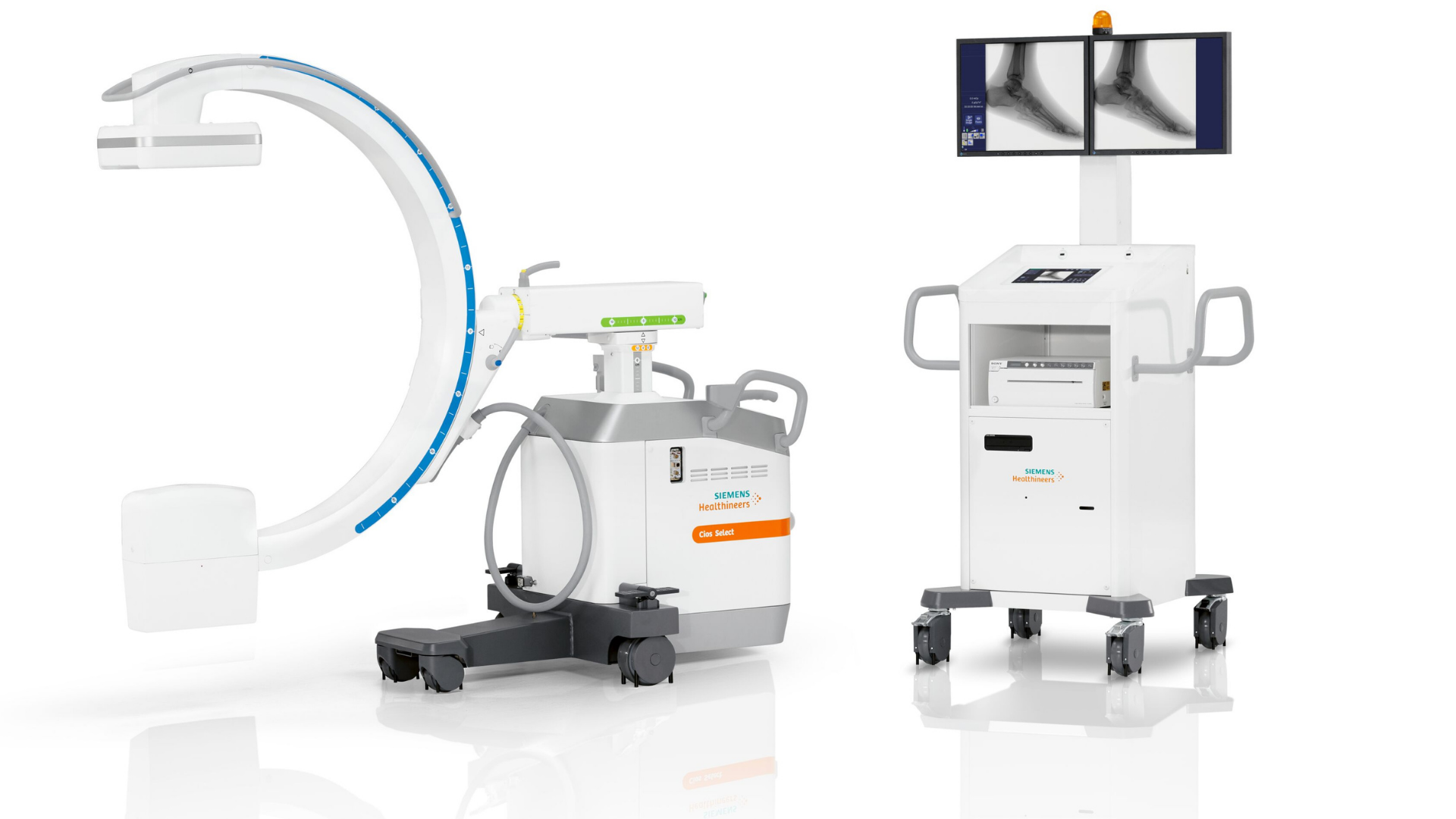

Cios Select with Flat Detector (FD)

Jump to:

Select Smart Surgical Imaging


As the pressures on healthcare providers increase, many surgeons want more powerful routine imaging equipment. Such technology has traditionally only been accessible in high-end systems.

Until now. The Cios Select® with flat-detector (FD) technology combines premium capabilities with an economic system design for excellent images, easy handling and high system availability.

Access optimal support in surgical procedures, efficient workflows and high reliability — a smart choice for your surgical routine.


  • Accuracy - see more with flat-detector technology
  • Productivity - streamline your work with smart touch user interface
  • Reliability - experience 99.8% system availability

Features & Benefits

Combining accuracy with productivity and reliability, Cios Select with flat-detector technology is a smart choice for your surgical routine. Get access to optimal support in surgical procedures, efficient workflows and high dependability in multidisciplinary use.

AT_SU_Internet_Cios_Select_Image_Accuracy_1800000004850262

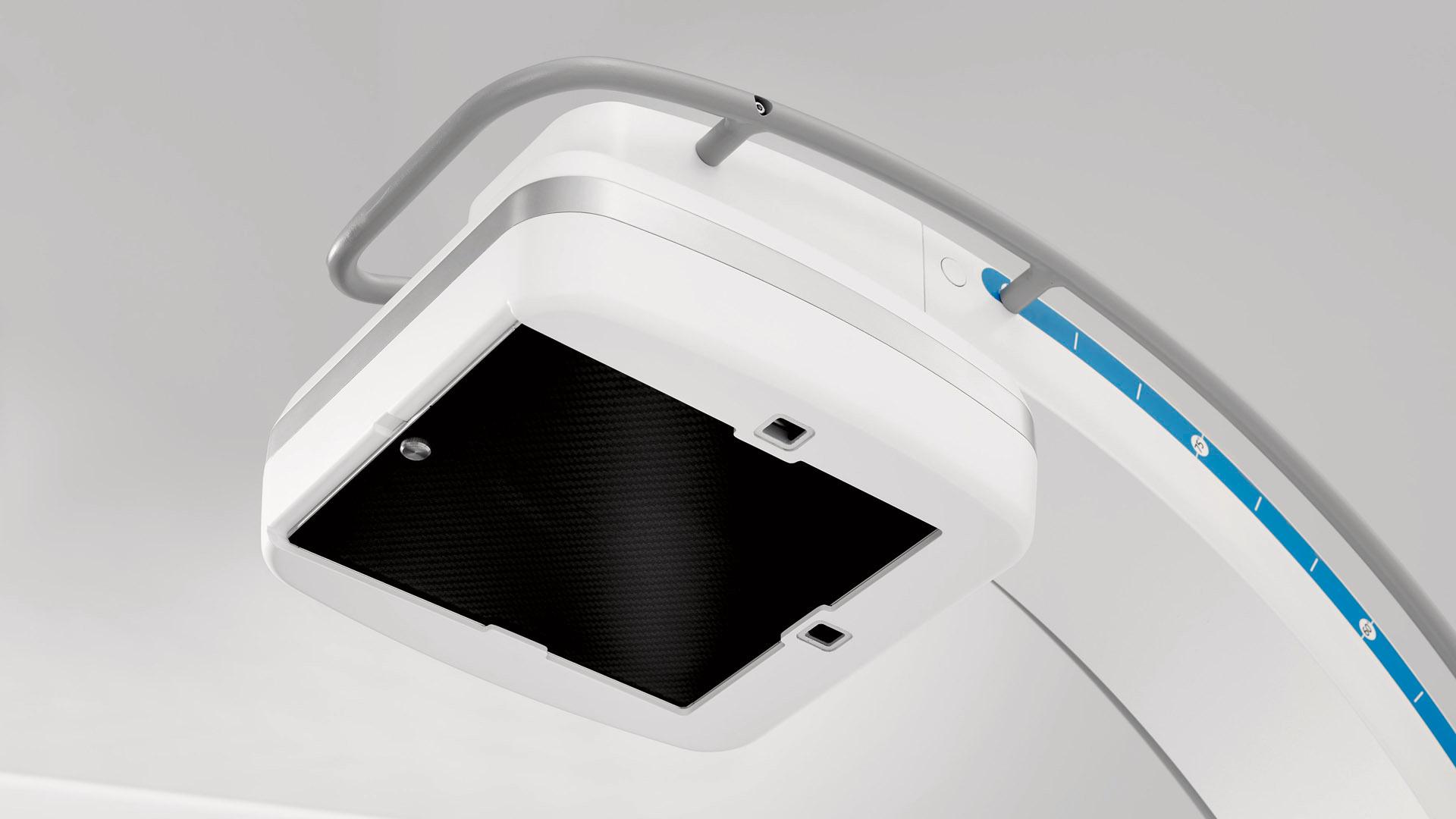

Accuracy — see more with Retina FD technology

Cios Select comes with premium technology that helps you improve imaging accuracy: See more details at the right dose and with the right power. Profit from optimal support for your surgical procedures thanks to flat-detector technology and automated dose optimization.

See more anatomical details with flat detector imaging: Retina FD technology

  • Larger field of view (21 cm x 21 cm) for better anatomical coverage and fewer images per procedure
  • High spatial resolution (2.4 LP/mm)
  • Distortion‐free images and better visualization of details
cios-select-productivity-1920x1080px_1800000005703996

The right dose in each individual case: CARE

  • Automated optimization of dose, brightness and contrast
  • Easy choice of the right X-ray parameters
  • Additional features for low-dose pediatric procedures available
AT_SU_Internet_Cios_Select_Image_Accuracy_1800000004850262

The right power whenever and wherever you need it: Smart power management

  • The right power for crisp static, dynamic and long-lasting imaging
  • Max power output of 2.3 kW
  • Tube current up to 24 mA in pulsed fluoro
  • Heat storage capacity of 1,100,000 HU
Cios_Select_with_Flat_Detector_Technology

Productivity — streamline your work

Cios Select allows you to efficiently tackle everyday interventions. Built for intuitive handling and productivity, it lets you preview images and operate the system via smart touch user interface. Experience hassle-free operation with a wireless footswitch2 and profit from easy patient positioning thanks to large C-arm geometry.

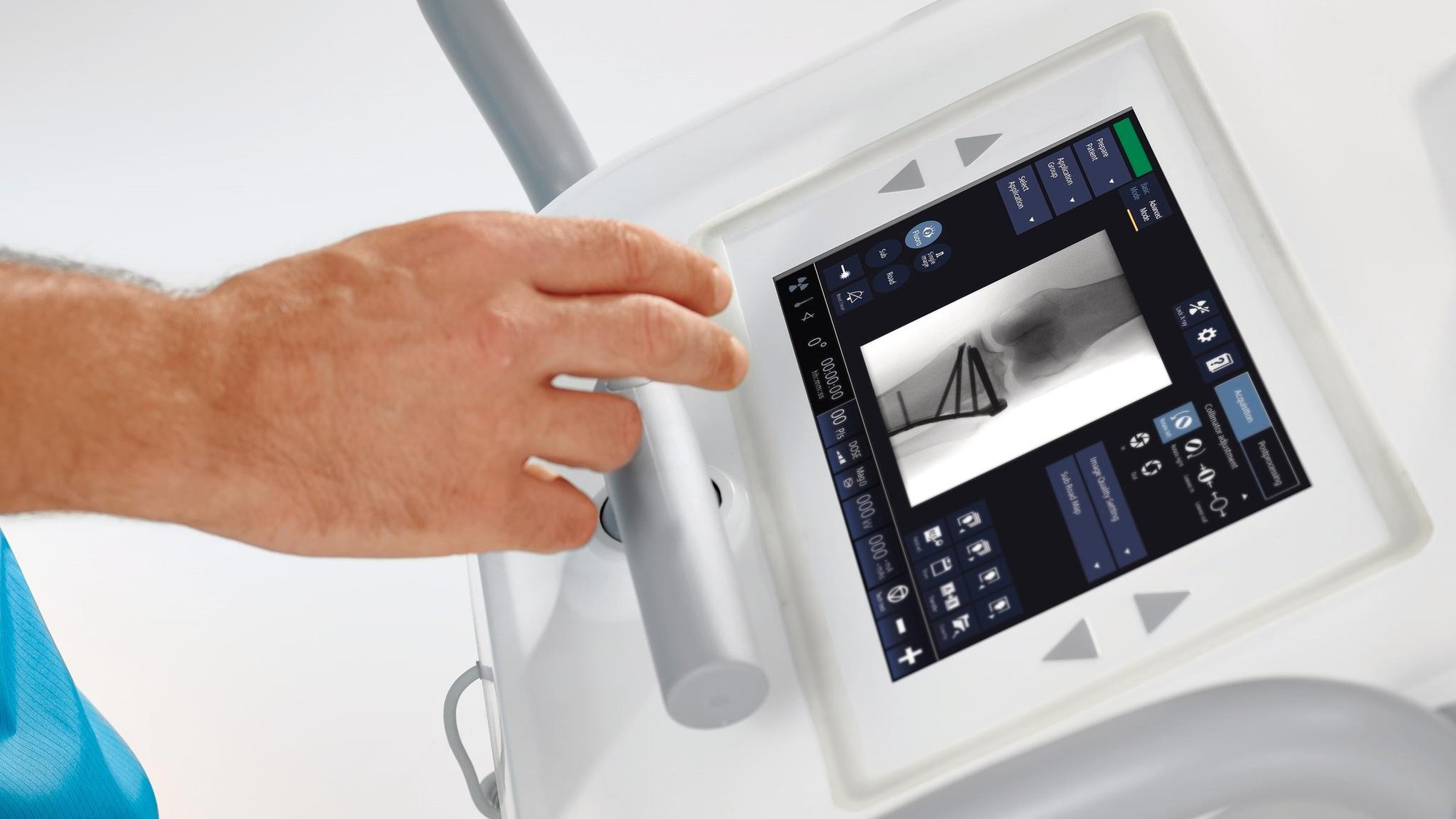

Large preview image for optimized system control: Smart touch user interface

  • Large preview image for optimized control
  • Flexible and consistent system control at the C-arm and from the monitor cart
  • Switch between simple and advanced modes
cios-select-productivity-1920x1080px_1800000005703996

Cableless freedom in the OR: Wireless footswitch2

  • More flexible positioning of the footswitch
  • Better infection control and easier cleaning
  • Battery lasts for 12-18 months3 and can be changed without special service
c-arm-surgery-team-op-siemens-cios-select_1800000005670320

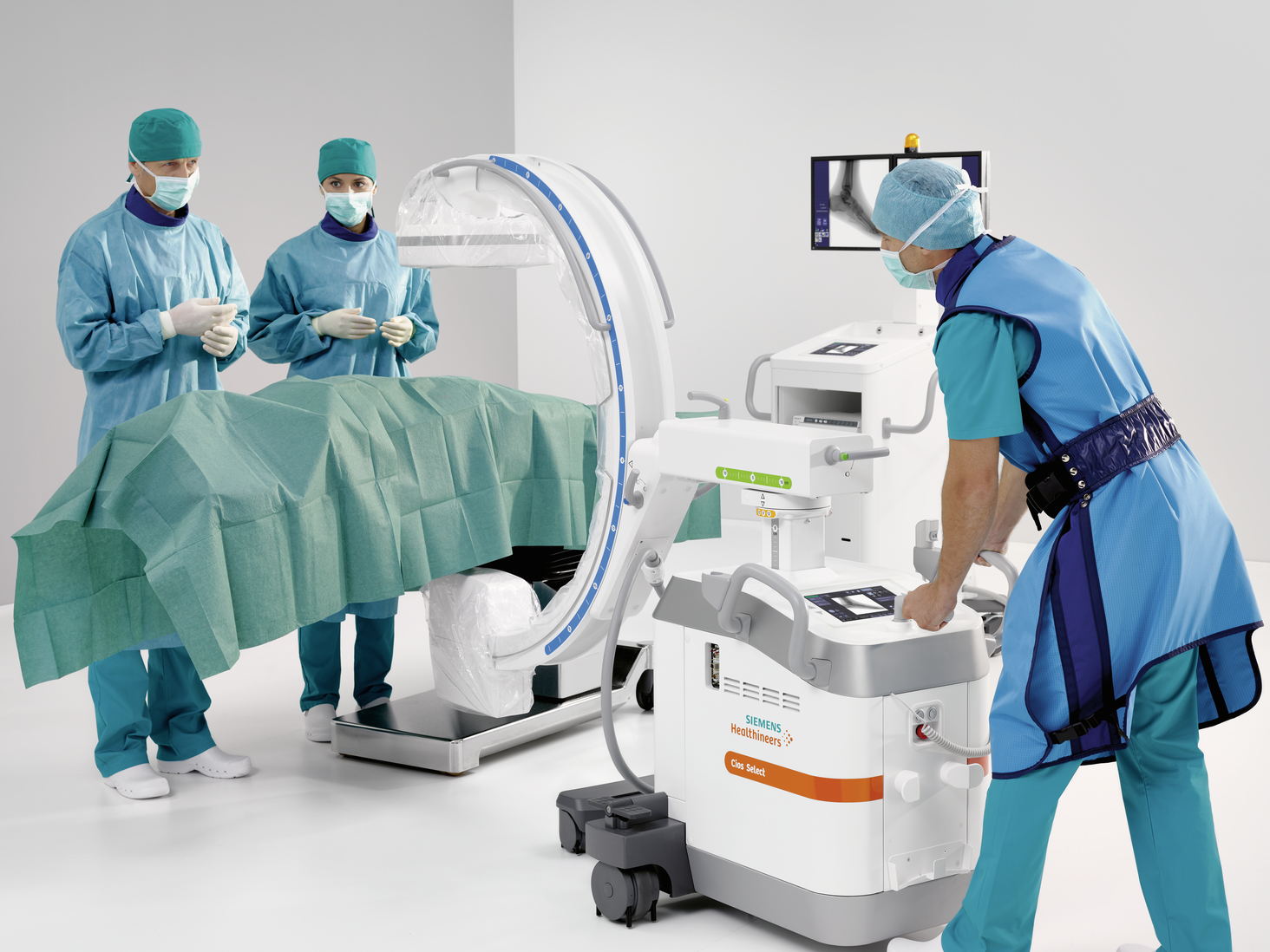

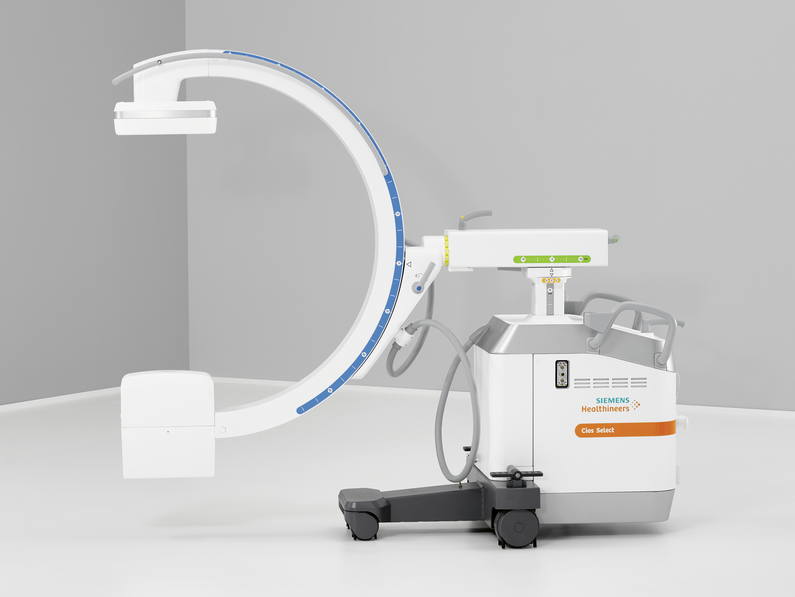

Easy patient and system positioning: Large C-arm geometry

  • Up to 25% more space compared to conventional mobile C-arms4
  • Lightweight design for easy maneuverability in the OR
  • Color-coded axes and brakes facilitate clear communication
c-arm-siemens-cios-select_1800000005670321

Advanced connectivity: Data transfer and data management

  • Flexible data management and seamless data integration into your institution’s data chain
  • Offering local storage of up to 300,000 images and offline data storage
  • Featuring full DICOM 3.0 functionalities2
Cios_Select_with_Flat_Detector_Technology

Reliability — experience 99.8% system availability1

Cios Select has you covered: Profit from manufacturing excellence for outstanding reliability, with smart and lean design that facilitates quick and effective service. See for yourself why our installed base reports 99.8% system availability.1

Proven high uptime, long lifecycle and low maintenance: Manufacturing excellence

  • Designed and tested by proven engineering from Siemens Healthineers
  • Our experience is based on over 12,000 systems installed worldwide5
  • Endurance test passed with over 441,000 system movements
Cios_Select_with_Flat_Detector_Technology

Facilitating efficient service in case it’s needed: Service-friendly

  • Lean system design to perform efficient service
  • Dedicated quick service access in the C-arm design
  • Proactive and interactive services available via Smart Remote Services (SRS)2
c-arm-surgery-team-op-siemens-cios-select_1800000005670320

Protection against overheating and data loss: Built-in system protection

  • Effective heat management and heat storage capacity of 1,100,000 HU
  • Tested for uninterrupted fluoro time of 50 min at 300͏͏ W
  • Uninterrupted power supply (UPS) securely stores all data before shutting down
c-arm-siemens-cios-select_1800000005670321
GET IN TOUCH

Contact us today to learn more about how we can help you solve your most pressing challenges.

1 Average system availability over the entire Siemens mobile C-arm installed base
2 Optional
3 With an average use scheme of 1h per day accumulated use
4 Data on file
5 Global installed base of Siemens Healthineers mobile C-arms with comparable performance as of March 2018
