Redefine patient pathways with outcome-relevant decisions

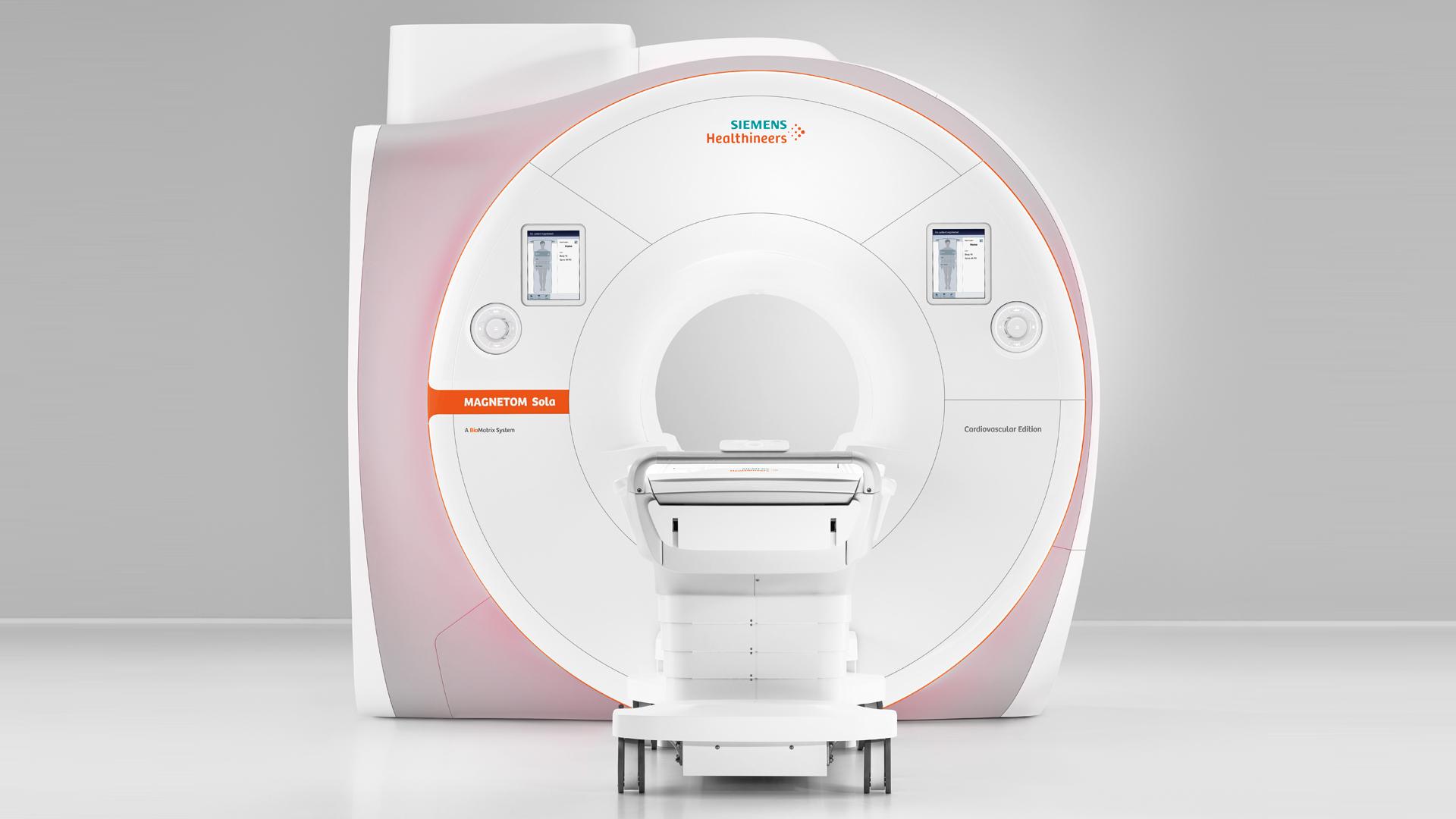

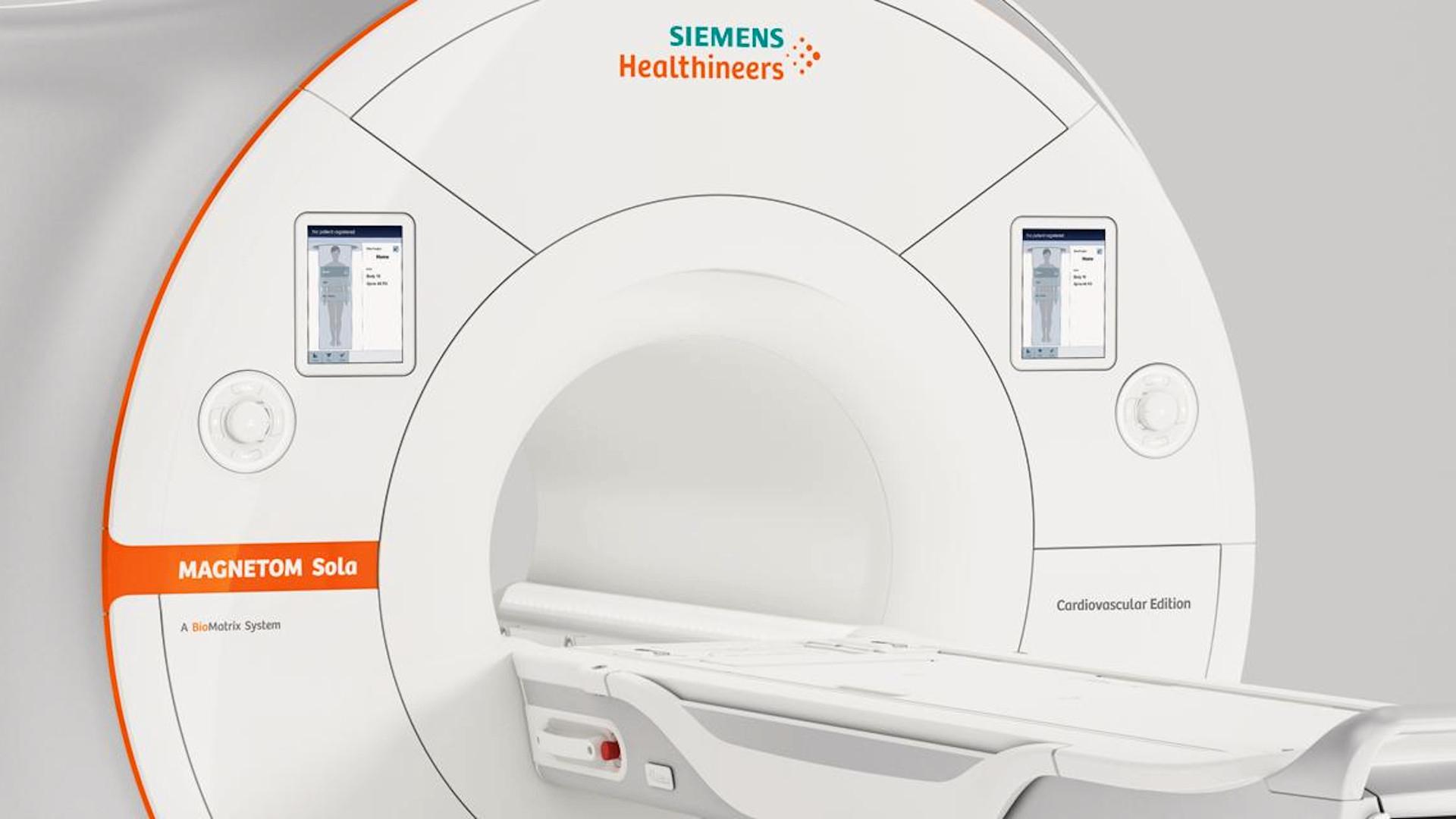

The MAGNETOM Sola Cardiovascular Edition from Siemens Healthineers automatically adjusts to patient biovariability to overcome unwarranted differences in cardiac MRI examinations. Connect with new capabilities and gain speed, reliability and ease of use with BioMatrix Technology. Expand toward precision medicine by improving diagnostic accuracy and facilitating individual treatment strategies.

BioMatrix Beat Sensor

Complete cardiac MRI exams without ECG leads, improving your workflow and patient experience.

  • Speed up your cardiac MRI workflow
  • Increase patient comfort
  • Reduce cost and waste

Free breathing exams with Compressed Sensing Cardiac Cine

Get high-quality consistent cardiac MRI scans with Compressed Sensing Cardiac Cine for functional imaging even for patients with arrhythmias or dyspnea.
The Compressed Sensing segmented technique supports high spatial and temporal resolution with very short breath-holds. The Compressed Sensing real-time technique enables high-quality diagnostic imaging in free-breathing. These techniques can dramatically speed up cardiac scans, increase efficiency and expand the patient population eligible for Cardiac MRI.

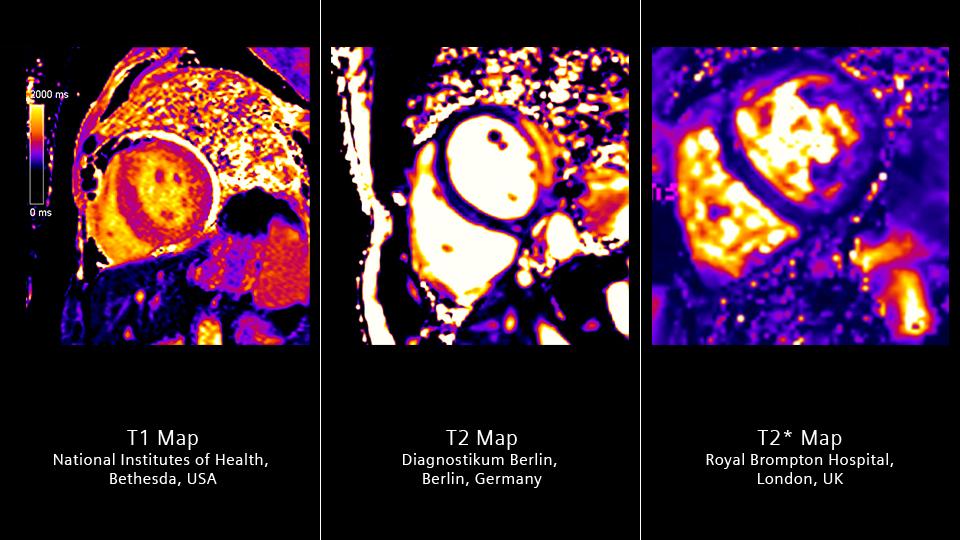

Gain pixel-based quantitation of myocardial tissue for the differential diagnosis of myocardial disease. Used together with HeartFreeze, a motion correction algorithm, MyoMaps supports the inline generation of T1, T2 and T2* colored parametric maps. MyoMaps helps distinguish between various myocardial pathologies, e.g. detecting myocardial inflammation (T1 Map), depicting cardiac edema (T2 Map) and improving early detection of iron overload (T2* Map).


PSIR HeartFreeze

Available on BioMatrix systems, PSIR HeartFreeze with motion compensation algorithms enables high-resolution imaging in free-breathing for viability assessment, even in patients with arrhythmias and those who cannot hold their breath.


CMR for challenging patients

High Bandwidth Inversion Recovery extends the benefits of CMR exams to patients prone to susceptibility artefacts.


myExam Cardiac Assist(formerly Cardiac Dot Engine)

Benefit from a comprehensive Cardiac MR examination in less than 30 minutes.
myExam Cardiac Assist is a highly automated tool to help you plan and execute CMR examinations. Using AI-powered algorithms such as AutoAlign, the myExam Cardiac Assist enables automatic planning of all cardiac views for standardized, reproducible cardiac scans. Step-by-step guidance takes the complexity out of cardiac exams and contributes to speed and efficiency.


myExam Angio Assist(formerly Angio Dot Engine)

Acquire optimally timed contrast images with interactive bolus timing. Achieve consistent contrast agent timing with every Angio examination. Deliver clear answers to your referring physicians —read and report MR Angio cases performed consistently with optimized kinetic timing.



A completely new non-contrast MR Angiography technique, QISS aids in improving patient safety and compliance for higher accuracy1 and better disease management while maintaining the diagnostic certainty you need in peripheral MRA exams.


Technical Details

Magnet System :
Field strength 1.5 Tesla
Bore size 70 cm Open Bore design
Helium consumption Zero Helium boil-off technology
Gradient strength XQ gradients 45/200 simultaneously [2.03 MVA]
RF technology :
Maximum number of channels2 204
Number of independent receiver channels that can be used simultaneously in one single scan and in one single FoV, each generating an independent partial image 48
Power consumption Eco-Power technology
Siting and Installation :
System length 157 cm cover to cover
System weight (in operation) 4.2 tons
Minimum room size3 28 m2 / 302 sq ft

Contact us today to learn more about how we can help you solve your most pressing challenges.

1 Hodnett, AJR-197-1466.
2 Channels (coil elements) that can be connected simultaneously.
3 Minimum total space requirement for magnet, electronics, and console room.
